Buy Powerful Neodymium Magnets for Diamagnetic Testing

I once spent three hours watching a piece of graphite float in mid-air. Not because I was bored, but because I had finally bought the right magnets. Honestly? Getting that first successful levitation was more satisfying than it probably should have been. If you’re here to buy powerful neodymium magnets for diamagnetic testing, you’ve likely seen the YouTube videos where pyrolytic graphite hovers like magic. It’s not magic. It’s physics. But the difference between a wobbling failure and a rock-solid float comes down to one thing: the magnets you choose.

Let’s get something straight. Not all neodymium magnets are created equal. You cannot grab a random N35 disc from a hobby kit and expect it to levitate a piece of bismuth or graphite. The magnetic field needs to be intense enough to overcome gravity but also stable enough to trap the diamagnetic material in a potential well. That requires a specific grade, a specific geometry, and a whole lot of Gauss.

Selecting the Right Magnet Grade for Diamagnetic Levitation

Why N52 is the Only Real Option for Most Setups

If you’re serious about diamagnetic testing, stop looking at N42 or N45. They’re fine for holding a note on the fridge. They’re not fine for creating a field gradient that can suspend a piece of water, graphite, or even a living frog. Yes—frogs have been levitated using diamagnetism. That takes about 16 Tesla. You won’t get that at home with a single magnet. But you can get close enough to float graphite with a stack of N52 neodymium magnets.

The “N” stands for Neodymium, and the number is the maximum energy product in Mega-Gauss-Oersteds (MGOe). N52 gives you about 52 MGOe. That’s roughly the highest commercially available grade without going into custom sintering or paying aerospace prices. Look—you could chase N55, but they’re rare, expensive, and often have terrible temperature stability. Stick with N52. It’s the sweet spot for cost versus field strength.

Another reason N52 dominates diamagnetic testing is its coercivity. That’s its resistance to demagnetization. When you stack multiple magnets together or place them in repulsion against another strong field, weaker grades can literally lose their magnetism. N52 holds its own. It’s a big deal when you’re trying to maintain a stable field for precise measurements or long-duration experiments.

The Critical Role of Field Profile and Stability

Here’s where most people mess up. They buy a single cylindrical magnet, slap it on a table, and drop graphite over it. That works for about two seconds before the graphite slides off and crashes. Diamagnetic levitation requires a field gradient that creates a restoring force. Basically, if the object moves sideways, the field needs to push it back. That happens with specific magnet arrangements—usually a pair of magnets in repulsion, or a “magnet stack” with alternating poles.

You need powerful neodymium magnets that maintain a consistent field across the levitation zone. Cheap magnets often have uneven magnetization. One side might be stronger than the other. In diamagnetic testing, even a 2% variation can cause the sample to drift or spin uncontrollably. Always buy from a reputable supplier that provides a magnetization curve and guarantees axial field symmetry.

Seriously—test your magnets with a Gauss meter before you set up your experiment. Measure across the surface. If the readings fluctuate more than 50 Gauss per millimeter, swap them out. That’s not being picky. That’s the difference between a stable float and a constant headache.

Understanding Magnet Geometry and Coating Requirements

Disc Versus Block Magnets for Levitation Setups

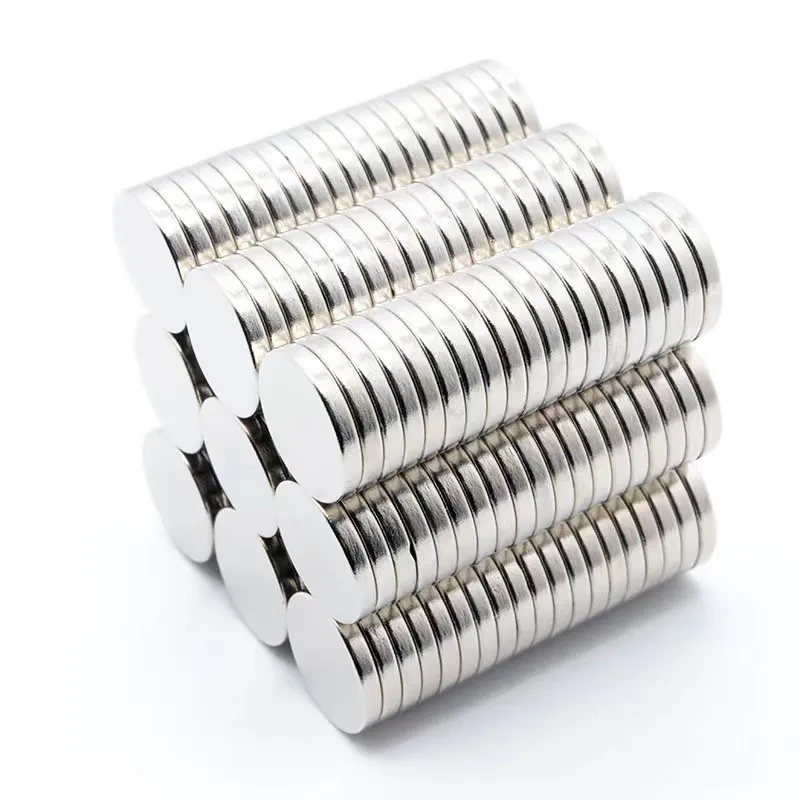

Not all shapes serve the same purpose. For diamagnetic levitation, disc magnets are the standard choice. Why? Because they create a symmetrical axial field that naturally centers the diamagnetic object. Block magnets, on the other hand, produce a more rectangular field profile. They’re great if you’re trying to levitate long, thin samples of graphite, but they tend to create instabilities at the edges.

Here’s a quick breakdown of what I’ve learned after building about a dozen levitation rigs:

- Disc magnets (cylindrical): Best for levitating small, round samples. Easy to stack. Creates a strong central peak in the field. - Ring magnets (hollow core): Used for “magnetic mirror” setups. The hole in the center allows for optical access or sample insertion, but you lose some field strength. - Block magnets (rectangular): Good for linear motion studies. You can guide a graphite sheet along a track, but levitation height is usually lower. - Sphere magnets: Avoid them. They don’t produce a steep enough gradient for reliable diamagnetic trapping.

I’ve personally seen setups using a single 2-inch diameter N52 disc that levitated a 1-inch square of pyrolytic graphite at about 3 mm height. That’s not bad. But switching to a stack of three 1-inch discs with alternating poles increased the height to 7 mm and dramatically improved lateral stability. It’s all about gradient.

Why Coating Matters More Than You Think

When you buy powerful neodymium magnets for diamagnetic testing, you’re usually buying them with a coating. Nickel-copper-nickel is standard. It’s corrosion-resistant and durable. But if you’re doing experiments with liquids—like levitating droplets of water mixed with paramagnetic salts—that nickel coating can react. I’ve seen it pit and flake within weeks.

For wet diamagnetic testing or high-humidity environments, go with epoxy-coated or gold-plated magnets. They cost more, but they don’t degrade. And degradation changes the field profile. A pitted magnet surface creates micro-eddies in the field that can make your sample wobble unpredictably. Honestly? It’s worth the extra $10 to avoid rebuilding your entire setup.

Also, be careful with bare magnets. They’re incredibly fragile. Neodymium is sintered powder. Drop it on a concrete floor, and it shatters into pieces that are still strongly magnetic—now you have shrapnel stuck to your tools. Not fun. Always buy coated. Always handle with gloves.

Matching the Magnet to Your Test Material

Graphite Versus Bismuth Versus Water

Different diamagnetic materials have different susceptibilities. That’s a fancy way of saying some are easier to levitate than others. Pyrolytic graphite is the gold standard. It has a highly anisotropic magnetic susceptibility, meaning it responds strongly along one axis. You can levitate it with a relatively modest field from a pair of N52 discs.

Bismuth, on the other hand, is a brute-force material. It’s the most diamagnetic element, but it’s dense. You need a much stronger gradient to lift it. That means more magnets, tighter spacing, and often a custom yoke or pole piece setup. If you’re planning to test bismuth, buy the largest N52 blocks you can find and arrange them in a Halbach array. It’s the only way to get the field strength needed without using an electromagnet.

Water droplets are a party trick. They look amazing, but they require a very focused field from a pair of ring magnets or a single large disc with a concave field. The droplet will bead up and float, but it’s extremely sensitive to air currents. You’ll need a sealed chamber. I’ve built one from an acrylic tube. It works, but the alignment has to be perfect—within 0.1 mm.

Matching Magnet Size to Sample Weight

There’s a quick rule of thumb I use. For every gram of diamagnetic material, you need roughly 1 Tesla of field gradient at the levitation point. That’s not exact, but it’s close enough to guide your magnet selection. A single N52 disc measuring 2 inches in diameter and 1 inch thick produces about 0.6 Tesla at its surface. Stack two of them, and you get something closer to 0.9 Tesla with a steeper gradient.

So if you’re trying to levitate a 2-gram piece of graphite, you need a stack of at least three N52 discs. For bismuth? Double that. And for water droplets? Honestly, you’re better off using a neodymium iron boron magnet array designed specifically for liquid levitation. Don’t guess. Calculate the buoyant magnetic force using the formula F = (χ/μ₀) B ∇B, where χ is the volume susceptibility. It’s a few minutes of math that saves hours of frustration.

I can’t count how many times I’ve seen people buy a single weak magnet, fail to get levitation, and then blame the material. It’s rarely the material. It’s almost always the magnet.

Safety Considerations When Handling Strong Neodymium Magnets

The Real Danger of Pinch Points and Flying Magnets

Let’s have a real talk. Powerful neodymium magnets are not toys. I have a scar on my left index finger from two N52 discs snapping together from six inches apart. They hit my finger before I could pull it away. That was a 25-pound pull force. If you’re buying magnets for diamagnetic testing, you’re probably looking at pull forces exceeding 100 pounds. That can crush bone.

Here’s a safety checklist I follow every single time:

1. Always wear thick leather gloves when handling large magnets separately. 2. Keep magnets at least 12 inches away from each other until you’re ready to stack them. 3. Use a wooden or plastic separator to slide them together—never use your fingers as a guide. 4. Keep magnets away from electronics, credit cards, pacemakers, and mechanical watches. 5. Store magnets with keepers (steel plates) across the poles to reduce stray field.

I’ve seen a 4-inch diameter N52 disc jump across a workbench and shatter a ceramic mug. That’s not an exaggeration. The kinetic energy of two strong magnets snapping together is substantial. Treat them like loaded springs.

Stray Field Effects on Your Experiment

Another thing nobody tells you—those stray magnetic fields can mess with your measurements. If you’re using a Hall probe or any sensitive electronics near your levitation setup, the field from your magnets will induce noise. I’ve had to rebuild entire data acquisition systems because I placed the controller too close to the magnet stack.

Keep all ferrous tools, brackets, and mounting hardware at least 18 inches away from the levitation zone. Use brass, aluminum, or 3D-printed plastic for your support structures. It’s a small investment that prevents the field from distorting in unpredictable ways.

Also, if you’re doing diamagnetic testing with biological samples—like cells or small organisms—the strong field can induce eddy currents or heating. It’s rarely enough to cause damage, but it’s worth monitoring with a thermocouple. Better safe than sorry.
