How to Use Ohms Law to Relate Electrical Pressure to Current

You ever pop open a dead battery and wonder why the same 12 volts that cranks your car engine just makes a flashlight bulb yawn? I’ve been messing with circuits for over a decade, and I still see folks get tripped up by this one simple truth: voltage is the push, current is the flow, and resistance is the gatekeeper. Seriously, it’s the three-legged stool of everything electrical. Without understanding how to use Ohms Law, you’re basically trying to fix a leaky pipe with a hammer. Look—this law is stupidly simple on paper, but it’s the kind of simple that unravels entire systems when you ignore it.

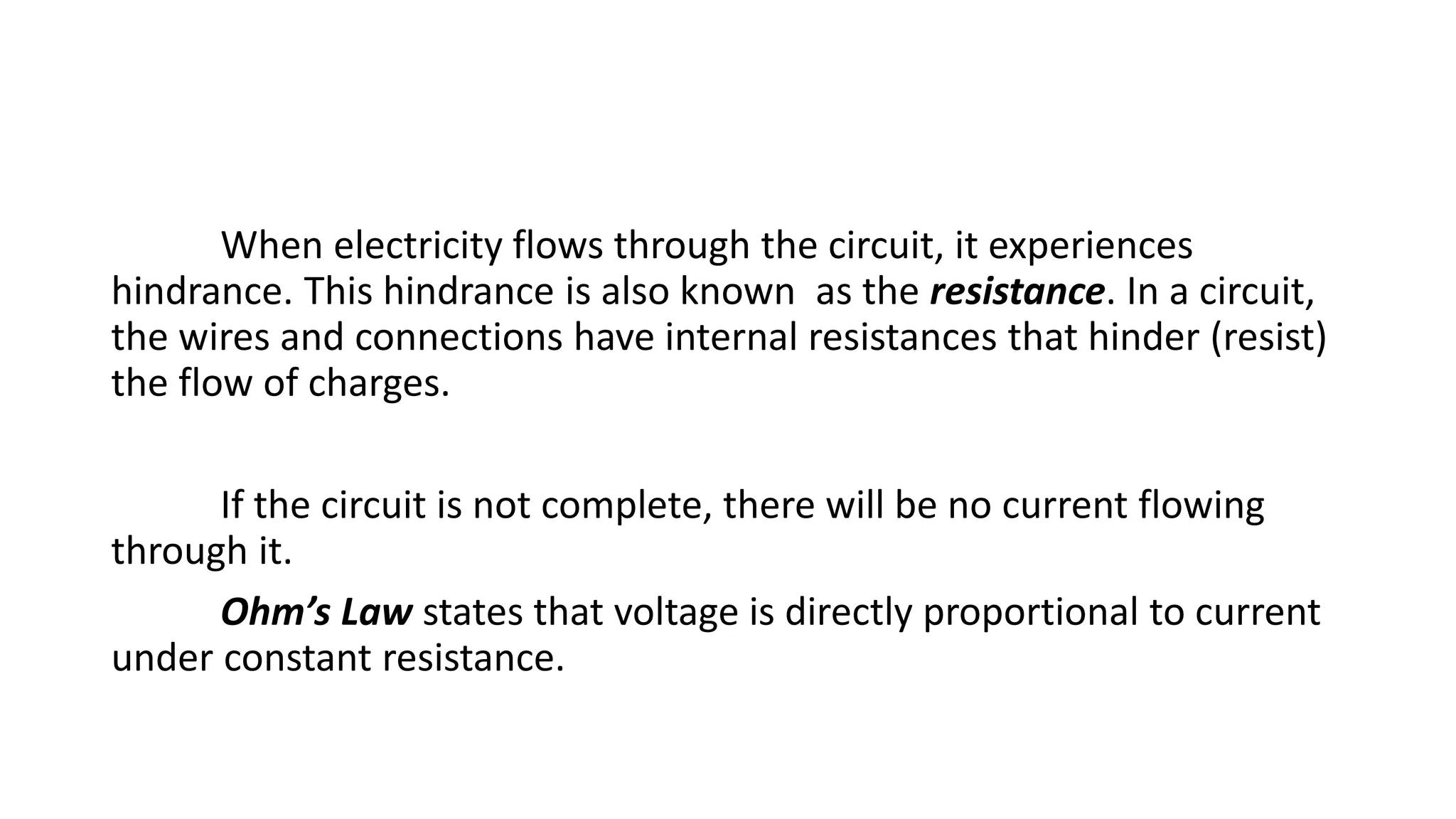

I remember my first big project: a custom lighting rig for a stage. I had the voltage dialed in, the bulbs rated, and everything looked beautiful on the schematic. Then the wires started smoking. That’s when I got reacquainted with the real relationship between electrical pressure and current. The math wasn’t wrong; I just forgot to respect the resistance. So let’s cut the mystery. Ohms Law states that the voltage across a conductor equals the current flowing through it multiplied by its resistance (V = I × R). That’s it. But knowing how to twist that formula in your head? That’s the skill that separates a wiring hack from a systems designer.

Why Voltage Is the Pressure Cooker and Current Is the Steam

Think of electrical pressure like the water pressure in your house. Crank the spigot, and more water blasts out. But if your hose is kinked (resistance), you get a pathetic dribble no matter how high the pressure is. That’s the whole damn game. Current doesn’t just magically appear because you have a big battery; it’s always fighting against the resistance of the wires, the load, and even the connections themselves. Honestly? Most house fires start because someone ignored this relationship.

The Water Hose Analogy That Actually Sticks

I’ve heard a thousand analogies, but this one works because you can feel it. Imagine a garden hose hooked to a spigot. The spigot’s position is your voltage—it sets the potential push. The water gushing out is current, measured in amps. Now stick your thumb over the nozzle. That restriction is resistance. Even with the spigot wide open (high voltage), if you clamp down hard enough (high resistance), the flow drops to a trickle. Conversely, take your thumb off (low resistance), and you get a powerful stream even with moderate pressure.

Here’s where people get it wrong: they think high voltage always means high current. Nope. A 50,000-volt stun gun barely tickles you because the internal resistance is massive—microamps of current. Meanwhile, a 12-volt car battery can weld steel because its resistance is near zero. Ohms Law makes this crystal clear: current = voltage divided by resistance. So when you’re troubleshooting a dead circuit, you’re not hunting voltage alone. You’re hunting the resistance that’s choking the flow.

Why Your Multimeter Tells a Lie Without Context

You slap a multimeter on a battery, see 12.6 volts, and think “problem solved.” But that reading is open-circuit voltage—the pressure with no load. Hook up a bulb, and that voltage can drop to 10 volts under load. Why? Because the bulb’s resistance and the wire’s internal resistance create a voltage divider. The electrical pressure you measure changes depending on how much current is being drawn. This is the hidden lesson: Ohms Law isn’t static. It’s a dynamic relationship that shifts as components heat up, batteries drain, or connections corrode.

I’ve seen technicians chase ghosts for hours because they measured voltage at the source but not at the load. A loose terminal can show 120 volts with no load, then drop to 60 volts when a motor kicks on. The resistance at that connection is stealing the pressure. So always, always measure voltage across the load while it’s running. That’s the real-world application of current and resistance fighting it out.

The Math You Actually Need to Remember (It’s Only Three Formulas)

Here’s the dirty secret: you don’t need calculus. You need three rearrangements of the same equation, and you need to stop second-guessing yourself. V = I × R (find voltage), I = V / R (find current), and R = V / I (find resistance). That’s all I use 99% of the time. But the trick isn’t memorizing them—it’s knowing which one to grab when your circuit goes sideways.

How to Pick the Right Formula Without Panicking

When a motor won’t spin, I think: “What am I missing?” If I know the motor’s rated resistance (say, 4 ohms) and the supply voltage (12 volts), I can calculate the expected current: 12 / 4 = 3 amps. If I measure 1 amp, I know something blocks the flow—maybe a bad winding or a oxidized switch. This diagnosis saves hours of pulling wires. The formula selection boils down to what you have measured and what you need:

• Need to check if a resistor is fried? Use R = V / I. Measure voltage across it, measure current through it, and compare the calculated resistance to the color bands.
• Worried about a wire overheating? Use I = V / R. If the wire’s resistance is 0.1 ohm and voltage is 12, you get 120 amps. That wire will melt. You need a thicker conductor.
• Designing a circuit from scratch? Use V = I × R to find the voltage drop across each component. Sum them up, and you’ll know if your battery can handle it.

Honestly? Most hobbyists mess up by forgetting that wires have resistance. They calculate for the load but ignore the path. A 10-foot run of 18-gauge wire has about 0.064 ohms. Doesn’t sound like much, but at 10 amps, that’s a 0.64-volt drop. For a 5-volt logic circuit? That’s a crash waiting to happen. Ohms Law doesn’t lie; it just exposes your assumptions.

Real Numbers, Real Consequences: A Table You Can Steal

Let’s make this concrete. You’re wiring a 12-volt LED strip rated for 2 amps total. You calculate the total resistance of the strip: R = 12 / 2 = 6 ohms. Now you run 20 feet of 22-gauge wire from the battery. That wire has about 0.32 ohms total. The combined resistance is 6.32 ohms. New current? I = 12 / 6.32 ≈ 1.9 amps. That’s a 5% drop—acceptable for lights. But if you use 28-gauge wire (about 1.2 ohms over 20 feet), total resistance jumps to 7.2 ohms, current drops to 1.67 amps, and your lights are noticeably dimmer. The electrical pressure didn’t change; the resistance ate your lunch.

Here’s a bullet list of common mistakes I see daily:

• Assuming voltage is constant across all points in a circuit. It’s not. Every connection and wire creates a voltage drop.
• Ignoring temperature effects. As a conductor heats up, its resistance increases. That’s why electric heaters draw less current once they’re hot.
• Using the wrong units. Milliamps vs. amps, milliohms vs. ohms—these kill more designs than bad components.
• Thinking Ohms Law applies to nonlinear devices like diodes or batteries. It doesn’t—those have dynamic resistance that changes with voltage.

Pushing Past the Basics: How to Use Ohms Law to Diagnose a Dead Circuit

I’ve seen people swap out perfectly good fuses because they didn’t understand that a blown fuse is a symptom, not the disease. The real question is: why did the current exceed the fuse rating? That’s a direct application of Ohms Law. Either the voltage spiked (unlikely in most household circuits) or the resistance dropped. In a short circuit, resistance plummets near zero. Using I = V / R, if R is almost zero, current skyrockets. That’s exactly what pops a fuse. So when you replace a fuse and it blows again, you’re not being unlucky—you’re ignoring the low-resistance path.

The Step-by-Step Diagnosis You Can Do Right Now

Grab your multimeter. I’ll walk you through a dead wall outlet scenario. First, set the meter to AC volts and check the outlet. If you see 120 volts, the electrical pressure is fine. The problem is downstream. Next, plug in a known working lamp. If it doesn’t light, you have a high-resistance connection or an open circuit. Now, with the lamp plugged in, measure the voltage at the outlet again. If it drops to, say, 90 volts, you have a bad neutral connection somewhere upstream. That loose connection adds resistance, which, per Ohms Law, causes a voltage drop before the current even reaches the lamp. The current is still flowing, but the pressure is wasted before it gets to the load.

This is where the law saves you. Instead of pulling out the whole wall, you know the problem is between the panel and the outlet. Start checking junctions. I’ve traced issues literally to a corroded wire nut that added 5 ohms of resistance. At 1 amp of load, that’s a 5-volt drop—enough to dim a light but not kill it entirely. But at 10 amps (say, for a space heater), that same 5 ohms creates a 50-volt drop. That heater barely works, and the wire nut gets hot enough to start a fire. Ohms Law doesn’t cause the fire; it predicts it.

Why This Law Makes You Look Like a Wizard

Once you internalize this, you can walk into a room and guess the problem before touching a tool. Someone says “my welder keeps tripping the breaker.” You ask “how long is the extension cord?” They say “100 feet of 14-gauge.” In your head, you calculate: 14-gauge has about 0.25 ohms per 100 feet. A welder might draw 20 amps. Voltage drop across that cord? V = 20 × 0.25 = 5 volts. The welder sees only 115 instead of 120. That extra strain makes it pull more current to compensate, tripping the breaker. You tell them “use a 10-gauge cord or move closer.” They look at you like you’re a magician. You’re not. You just used Ohms Law to relate electrical pressure to current and resistance. It’s that simple, and it’s that powerful.

Common Questions About How to Use Ohms Law to Relate Electrical Pressure to Current

Can I use Ohms Law for AC circuits?

Yes and no. Ohms Law works for purely resistive AC loads like heaters and incandescent bulbs. But for inductive loads (motors, transformers) or capacitive loads, you run into reactance. That’s where impedance replaces pure resistance, and the math gets a bit hairier (think complex numbers). For basic troubleshooting, treat it like DC. For precision work, grab an impedance meter and a calculator that handles phase angles.

What happens if I try to apply Ohms Law to a battery?

Batteries have internal resistance. When you draw current, that internal resistance creates a voltage drop inside the battery. So the electrical pressure you measure at the terminals drops under load. Ohms Law still describes that relationship, but you have to account for the battery’s internal resistance in the total loop. That’s why a dying battery might show 12 volts with no load but 9 volts when cranking a starter.

Why doesn't Ohms Law work for LEDs or semiconductors?

Because those components don’t have a fixed resistance. Their resistance changes depending on the voltage you apply. They obey different rules (like the Shockley diode equation). For LEDs, you use Ohms Law to size the current-limiting resistor, but you don’t apply it directly to the LED itself. Always treat the LED as a voltage drop (about 2–3 volts) and then use the law to calculate the resistor value.

Is there a quick mental shortcut for estimating current from voltage and wire size?

For copper wire at room temperature, remember that 18-gauge wire has roughly 0.0064 ohms per foot. Multiply by length (round trip) to get resistance. Then use I = V / R to estimate worst-case current. For example, a dead short on a 12-volt source through 10 feet of 18-gauge gives you about 12 / (0.0064 × 20) = 12 / 0.128 ≈ 94 amps. That’s why you need fuses. This isn’t perfect, but it’ll keep you out of trouble until you can measure properly.

Does electrical pressure ever truly equal zero when current flows?

In a perfect superconductor, yes—zero resistance means zero voltage drop even with massive current. But in the real world? Every wire, every connection, every switch has some tiny resistance. So there’s always a voltage drop, even if it’s millivolts. That’s not a flaw; it’s physics. Ohms Law nails that relationship exactly. The closer you get to zero resistance, the more current flows for a given pressure, which is why dead shorts are so dangerous.
