How to Use an IGBT as a VFD Power Switch

You've got a motor that needs to spin at different speeds, and you're staring at a pile of IGBTs wondering how to turn them into a variable frequency drive. Honestly? That's the right instinct. The IGBT is the backbone of modern VFDs, but treating it like a simple on-off switch is a recipe for smoke and expensive silence.

I've spent over a decade debugging VFD boards that looked great on paper but turned into fire hazards on the bench. The difference between a drive that runs for ten years and one that dies in ten seconds usually comes down to how you handle the gate. Not the collector. Not the emitter. The gate.

Let's dig into the guts of this. No fluff. Just the practical reality of using an IGBT as a VFD power switch.

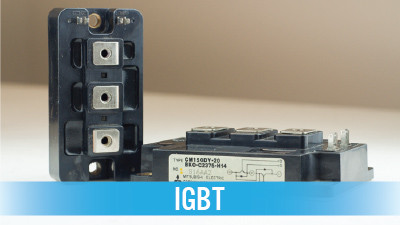

Why the IGBT is the Workhorse of Modern VFDs

The IGBT sits in a sweet spot that no other device really touches. It's got the high input impedance of a MOSFET (easy to drive) with the low saturation voltage of a BJT at high currents. For a VFD power switch handling motor loads, that combination is gold.

Here's the thing—motors are inductive loads. They suck current. When you switch an IGBT off, the current doesn't just stop. It wants to keep flowing. The IGBT handles this without the massive voltage spikes that would destroy a MOSFET at the same power levels. Seriously. I've seen MOSFETs die just from looking at a 10HP motor wrong. An IGBT shrugs it off.

But there's a catch. The IGBT has a tail current at turn-off. That means even after you pull the gate low, current trickles for a few microseconds. In a VFD, where you're switching at 4-16 kHz, those microseconds eat into efficiency. You need to design the gate drive to minimize that tail without causing overshoot. It's an art as much as a science.

The Short Version of What an IGBT Actually Does

Think of it as a switch that opens and closes based on voltage at the gate. No gate current in steady state (unlike a BJT). Just voltage. When you put 15V on the gate relative to the emitter, the switch closes. When you pull it to -5V or 0V, it opens.

That's it. That's the whole job.

But in a VFD, you're not just closing the switch once. You're doing it thousands of times per second, in specific patterns, to create a simulated sine wave. Each transition costs energy. Each milliohm of resistance in the path costs heat. Each nanosecond of timing error costs torque ripple.

The Bridge Topology and Its Dirty Little Secret

Your VFD uses an H-bridge or a three-phase bridge. Six IGBTs, each with an anti-parallel diode. The secret that nobody puts in the datasheet? The parasitic capacitances between collector and gate create feedback paths that can turn the IGBT back on when you least expect it.

Look—I've been there. You think the IGBT is off. The voltage across it rises. That dV/dt feeds current through the Miller capacitance into the gate. If your gate driver impedance is too high, that current pushes the gate voltage above threshold. The IGBT turns on. The leg shorts. The drive dies.

You need gate resistors, negative gate drive, and tight layout to kill that feedback. Don't skip it.

The Gate Drive: Your Most Critical Interface

This is where most engineers fall down. They choose an IGBT based on current rating and voltage, then slap on a generic gate driver chip and wonder why it runs hot. The gate drive is the interface between your control logic and the power stage. Get it right, and the IGBT is happy. Get it wrong, and nothing else matters.

I use dedicated gate driver ICs with desaturation detection. They cost more. They save your board. The desat detection monitors the collector-emitter voltage when the IGBT is supposed to be on. If that voltage stays high, the IGBT isn't saturating properly—maybe a short circuit, maybe a fault. The driver shuts it down in microseconds. Without that feature, you're one fault away from shrapnel.

Voltage and Current Requirements for the Gate

A typical IGBT needs +15V to turn on hard and -5V to turn off firmly. The +15V ensures the device saturates with low Vce(sat). The -5V provides noise immunity and speeds up turn-off by pulling charge out of the gate.

Don't use +12V. Don't use -2V. Use the recommended voltages from the datasheet. I've seen drives that used +12V and had 20% higher conduction losses. The IGBT ran 30 degrees hotter for no good reason. Pulling the gate to -5V also prevents parasitic turn-on when the other IGBT in the leg switches. That alone is worth the extra supply rail.

The gate charge (Qg) tells you how much energy each switching event costs. A typical 600V, 50A IGBT might have Qg around 200 nC. At 10 kHz, that's 2 mC per second. At 15V, that's 30 mW just in gate drive power. Sounds small, but it adds up when you have six IGBTs and multiple phases. Your gate driver needs to source and sink that current quickly.

The Miller Plateau and How to Manage It

When the IGBT turns on, the collector voltage drops. That change feeds current back through the Miller capacitance to the gate. The gate voltage stalls at the Miller plateau for a few nanoseconds while the IGBT transitions.

This plateau is your enemy and your friend. It slows down switching, which reduces EMI. But it also increases switching losses. You tune the gate resistor to balance these two. A smaller resistor gives faster switching but higher ringing. A larger resistor slows things down and reduces overshoot.

For a VFD, I usually start with a gate resistor between 10 and 22 ohms. Then I measure the turn-on and turn-off times with an oscilloscope. If I see excessive ringing, I increase the resistor. If switching losses are too high, I decrease it. There's no magic formula. You have to measure it.

Selecting the Right IGBT for Your VFD Application

Here's where the datasheet becomes your best friend—or your worst enemy. Not all IGBTs are created equal. Some are optimized for low conduction losses. Some are optimized for fast switching. Some are cheap junk that should never be used in a VFD.

I always look at the trade-off between Vce(sat) and switching losses. A device with Vce(sat) of 1.7V at rated current will run cooler at low frequencies but might have high turn-off losses. A device with Vce(sat) of 2.2V might switch faster and be better for 16 kHz operation. The right choice depends on your switching frequency.

Voltage and Current Ratings: Don't Skimp

Rule of thumb: pick an IGBT with at least 120% of your nominal DC bus voltage. For a 480V system with a rectified DC bus around 680V, use 1200V devices. Don't use 600V devices. The bus voltage combined with switching transients can exceed 600V easily. I've seen 600V IGBTs fail on a 400V bus just from a minor cable ringing event.

For current rating, look at the motor's RMS current and multiply by at least 1.5. A 10A motor load? Get a 25A or 30A IGBT. The headroom covers startup surges, stalls, and poor cooling. VFDs run hot internally. The IGBT junction temperature needs to stay below 125C under worst-case conditions. Derate aggressively.

Switching Speed vs. Conduction Losses

Fast IGBTs have lower switching losses but higher conduction losses. Slow IGBTs are the reverse. For a general-purpose VFD running at 4-8 kHz, I use medium-speed IGBTs. They offer a reasonable balance. For servo drives running at 16-20 kHz, I go with fast trench-field-stop devices that handle the high frequency without melting.

You can look at the datasheet's turn-on and turn-off energy numbers (Eon and Eoff). Multiply by switching frequency to get switching losses. Add conduction losses (Vce(sat) times average current). That sum must be less than the thermal capability of your heatsink and junction. If it isn't, your VFD won't last an hour.

Practical Steps to Integrate the IGBT into Your VFD Circuit

Let me walk you through the actual process I use when I build a VFD power stage. These steps come from experience—both successes and painful failures.

• Step 1: Calculate the DC bus voltage. For a three-phase rectified input, Vbus = Vrms * 1.414. For 480V, that's 679V. Add 10% for line variations. You're at 747V. Use 1200V IGBTs.
• Step 2: Choose the gate driver. Pick an IC with at least 2A peak gate current capability. Use desaturation protection and active Miller clamping. The IRS21867 or ACPL-332J are solid choices. Don't use optocouplers from the 1990s.
• Step 3: Design the gate resistor network. Use separate turn-on and turn-off resistors. A diode in parallel with the on resistor lets you turn on slowly and off quickly. The turn-off resistor should be half the value of the turn-on resistor.
• Step 4: Layout the power loop tightly. The DC bus capacitors must be physically close to the IGBT module. Every nanosecond of inductance equals overshoot. Use laminated bus bars or wide PCB traces. Keep the loop area small.
• Step 5: Add snubber capacitors. Across each IGBT, place a 0.1uF to 0.47uF film capacitor. It absorbs the energy from stray inductance during switching. Without it, you get voltage spikes that eat your margin.
• Step 6: Thermal management. Use thermal paste, not pads. Torque the IGBT to the heatsink as specified in the datasheet. Measure the case temperature under full load. If it exceeds 100C, your heatsink is too small or your airflow is insufficient.

Honestly, step 4 is the one that trips up most people. I've seen beautiful layouts with perfect signal routing but the power loop runs through six inches of PCB trace. The parasitic inductance creates a voltage spike that kills the IGBT on the second switch. It's not a subtle failure.

Test every IGBT leg with a low voltage (24V DC) before you connect high power. If the inverter shorts at 24V, it will definitely short at 600V. Debug at low voltage. Save yourself the smoke.
