Step-by-Step Thevenin Equivalent Analysis for Transistors

Ever stared at a transistor biasing network and felt your brain start to melt? Yeah, me too. You've got resistors flying in all directions, a DC source, and that tiny three-legged device that seems to laugh at simple Ohm's Law. Thevenin equivalents are your rescue raft. Seriously, they turn a messy voltage divider into a clean, single source and resistor. It's the difference between guesswork and precision. Once you master this step-by-step Thevenin equivalent analysis for transistors, you'll never look at a schematic the same way again. And that's a good thing.

This isn't just academic fluff. In real-world design—whether you're biasing a common-emitter amplifier or building a switching circuit—the Thevenin equivalent lets you isolate the transistor from the surrounding network. You get a simple model that predicts the quiescent point without iterating through a dozen equations. Look—I've spent over a decade debugging circuits where a bad bias point caused oscillations or drift. Thevenin saved my sanity more than once. So let's dive into the nuts and bolts.

Why Thevenin Equivalents Matter for Transistor Circuits

The Hidden Simplicity of Transistor Networks

Transistors are nonlinear devices. That's their whole deal. But the networks feeding them—the voltage dividers, collector resistors, and emitter degeneration—are perfectly linear. That's where the Thevenin equivalent analysis shines. By reducing that linear mess to one voltage source (Vth) and one series resistor (Rth), you can directly plug the transistor into a simple circuit. No more parallel resistor combos that make your head spin.

I'll be honest: when I first learned this, I thought it was a shortcut for lazy engineers. Then I tried to bias a transistor without it. Ten minutes of algebra later, I was a convert. The beauty is that the transistor sees the same voltage and current at its base (or gate, for FETs) regardless of how complex the upstream network is. That's the power of equivalence. It's like replacing a tangled Christmas light string with a single bulb and a dimmer switch. Same effect, way less frustration.

But here's the catch: the Thevenin equivalent only works for the linear part of the circuit. You can't apply it to the transistor itself because that's where the nonlinear action happens. You draw a line—literally—around the transistor terminals (base, emitter, collector) and apply Thevenin to everything else. That line is your boundary. Everything inside stays intact; everything outside gets reduced. It's a clean separation that makes analysis manageable. Honestly, if you're not using this technique, you're making your life harder than it needs to be.

When You Can (and Can't) Use Thevenin

Not every transistor situation permits a Thevenin equivalent. The network you're reducing must be linear—meaning it contains only resistors, independent sources, and linear dependent sources (like a current-controlled current source, if you model the transistor as such). In standard biasing, the resistors and DC supply are linear. So yes, you're good. But if there's a capacitor in the DC path (like for AC coupling), you have to remove it first because capacitors block DC. That's a common gotcha.

Also, the Thevenin analysis assumes the transistor doesn't load the network in a way that changes the linear portion. Wait—that sounds contradictory. Actually, Thevenin is valid regardless of what you connect to the terminals. The linear network's behavior at the terminals is fully captured by Vth and Rth, no matter what transistor you hang on it. That's the whole point. But you must ensure you're analyzing the correct terminals. For a bipolar junction transistor (BJT) in common-emitter configuration, you typically look at the base terminal. For a MOSFET, it's the gate. Pick the wrong pair, and your equivalent is useless.

One more thing: Thevenin is a DC tool when biasing transistors. For AC analysis, you usually replace the transistor with its small-signal model and then apply Thevenin to the linearized network. That's a different beast. But for setting the DC operating point—the quiescent Q-point—the step-by-step Thevenin equivalent analysis for transistors is your go-to. Don't overcomplicate it. Start with DC, and you'll build the intuition for AC later.

The Exact Step-by-Step Process You Need

Step 1: Identify the Load and Terminals

First, decide which part of the circuit is the transistor and which is the linear network. Draw a dotted line around the transistor. The two terminals you care about are the base and ground (or base and emitter, depending on configuration). For a typical BJT bias circuit, the base is connected to a voltage divider made of two resistors (R1 and R2) tied to Vcc and ground. That divider is your target. The transistor's base current will be negligible compared to the divider current—if you designed it right—but Thevenin accounts for that anyway.

Now, open the terminals. That means remove the transistor from the circuit. Seriously, take it out mentally. You're left with a two-terminal network: the base node and ground. That network includes Vcc, R1, R2, and possibly other resistors if there's emitter degeneration. But for simplicity, let's assume a standard voltage divider. Write down the values. I like to label the terminals A (base) and B (ground). This step seems trivial, but I've seen people short the wrong nodes. Double-check your schematic. It's a big deal.

Step 2: Calculate Thevenin Voltage (Vth)

With the transistor removed, the Thevenin voltage is the open-circuit voltage across the terminals A and B. In this case, it's simply the voltage at the base node with no load. That's just the voltage divider output: Vth = Vcc * (R2 / (R1 + R2)). Easy, right? But wait—if there's an emitter resistor that biases the base through a different path, you need to include that. Always look for any resistors that might be in series with the base terminal before you go to Vth. In most simple bias networks, the base resistor is separate from the divider, but Thevenin doesn't care.

One nuance: if the transistor has a collector resistor that also connects to the base via feedback, you're now in feedback territory. That's a more advanced case. For now, assume no feedback. So Vth is just the open-circuit voltage. Measure it with a multimeter in simulation or calculate it. Let's say Vcc = 12V, R1 = 10k™, R2 = 5k™. Then Vth = 12 * (5 / 15) = 4V. Bang. That's your Thevenin equivalent voltage source. Write it down. Don't skip this step even if it seems trivial.

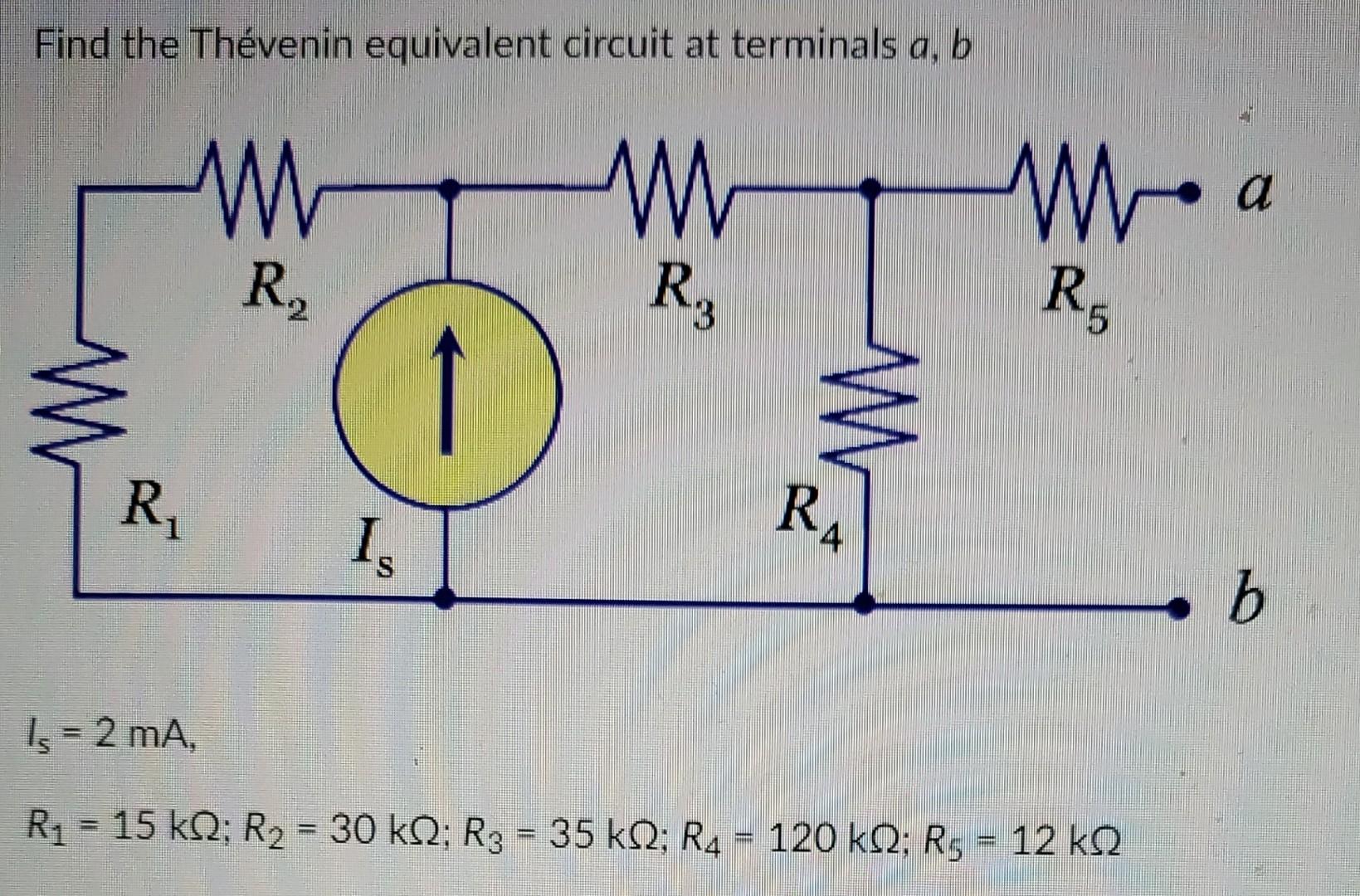

Step 3: Find Thevenin Resistance (Rth)

Here's where most people trip up. To find Thevenin resistance, you deactivate all independent sources. That means replace voltage sources with a short circuit (a wire) and current sources with an open circuit. In our voltage divider, Vcc becomes a short. Now look back into the terminals A and B. You'll see R1 and R2 in parallel from A to ground. Yes, parallel. Because with Vcc shorted, R1 connects from A to ground, and R2 connects from A to ground. So Rth = R1 || R2 = (R1 * R2) / (R1 + R2). In our example, 10k || 5k = 3.33k™.

But careful—if there's a resistor in series with the base terminal (like a base biasing resistor separate from the divider), that resistor is also in series with the Thevenin output. In that case, Rth becomes (R1 || R2) + that series resistor. Always trace the path from terminal A to ground through the deactivated network. I recommend redrawing the circuit after shorting the source. It eliminates confusion. And remember, if there are multiple sources, you deactivate all of them. This is standard linear network theory. Don't overthink it. Once you have Vth and Rth, you can replace the entire linear network with a simple series circuit: Vth in series with Rth, connected to the transistor's base.

Practical Example: A Common Emitter Amplifier Bias Network

Working Through the Numbers

Let me walk you through a real circuit. Suppose you have a common-emitter amplifier with Vcc = 15V, R1 = 100k™, R2 = 22k™, and a collector resistor Rc = 4.7k™. The transistor is a 2N3904 with a beta of about 150. You want to find the base voltage and current. First, remove the transistor. The base terminal connects to the junction of R1 and R2. Ground is the reference. Calculate Vth: 15V (22k / (122k)) = 15 0.1803 = 2.705V. Good. Now Rth: (100k * 22k) / (100k + 22k) = 2.2e9 / 122e3 = 18.03k™. So the Thevenin equivalent at the base is a 2.705V source in series with an 18.03k™ resistor.

Now reattach the transistor. The base-emitter junction (with emitter grounded) behaves like a diode with a forward drop around 0.7V (silicon). So the base voltage Vb = Vth— (Ib Rth). But we don't know Ib yet. That's where the transistor model comes in. Using KVL: Vth = Ib Rth + Vbe + (Ie Re). If Re = 0 (emitter directly grounded), then Vth = Ib Rth + 0.7V. So Ib = (Vth - 0.7) / Rth = (2.705 - 0.7) / 18.03k = 2.005 / 18.03k = 0.111 mA. That's about 111 microamps. Then Ic = beta Ib = 150 0.111mA = 16.65mA. That seems high? Check: Vcc - IcRc = 15 - 16.654.7 = 15 - 78.2 = negative? Something's off. Well, that's because the transistor is saturating. You'd need to adjust the divider or add emitter degeneration. But the Thevenin method correctly gave the base conditions; it's up to you to design for proper Q-point. See? The tool doesn't lie.

Common Pitfalls and How to Avoid Them

• Forgetting to deactivate all sources. Only voltage sources become shorts; current sources become opens. If you have a current source in the network, don't just remove it. Replace it with an open circuit.
• Mixing up terminals. Thevenin is defined across a specific pair of terminals. If you accidentally include the collector or emitter in your network, you'll get a wrong equivalent. Always isolate the transistor first.
• Ignoring base current loading. The Thevenin equivalent is valid regardless of load, but if the transistor's base current is large relative to the divider current, your Q-point might drift. Thevenin gives you the exact relationship, so you can check if Rth is too high. Use the rule of thumb: the current through R1 and R2 should be at least 10 times the base current.
• Forgetting Vbe temperature dependence. Thevenin analysis assumes Vbe is constant at 0.7V. But it shifts about -2mV per degree Celsius. That's a real-world issue. Your Thevenin equivalent doesn't change, but the resulting Ib does. Plan for thermal stability by adding emitter feedback.

I can't stress enough how many times I've seen students (and seasoned engineers) short the wrong node. Draw the circuit step by step. Use a different color for the Thevenin reduced network. It's visual—and it works. Also, always simulate after calculation to validate. I use LTspice for quick sanity checks. But the math is reliable if you're careful.

Common Questions About the Step-by-Step Thevenin Equivalent Analysis for Transistors

Can I use Thevenin for AC analysis of transistor circuits?

Yes, but with a twist. For small-signal AC analysis, you first replace the transistor with its linearized model (like the hybrid-pi model). Then you apply Thevenin to the linear AC network, which includes capacitors as impedances. The procedure is identical—find open-circuit voltage and deactivate independent AC sources. However, the DC biasing must be solved first using the Thevenin equivalent for DC. So you'll do two separate Thevenin analyses: one for DC, one for AC. Don't mix them up.

What if my transistor circuit has multiple power supplies?

That's no problem. Thevenin's theorem works for networks with any number of independent sources. You deactivate all of them (short all voltage sources, open all current sources) when finding Rth. For Vth, you calculate the open-circuit voltage considering all sources simultaneously. Use superposition if the circuit is complex. In practice, you'll often have Vcc and a negative supply, or dual rails. Just treat them as independent sources and follow the same steps. It's a bit more algebra, but the method scales.

Do I always need to remove the transistor to find the Thevenin equivalent?

Absolutely. The Thevenin equivalent is defined for the linear network feeding the transistor. If you leave the transistor in, you're including its nonlinear characteristics, which violates the linearity assumption. Remove it, find Vth and Rth across the base and ground (or gate and source for FETs), then reattach the transistor. This separation is the core of the method. Skipping it leads to circular equations and headaches.

Why does my calculated base current differ from simulation?

Simulators use detailed transistor models with temperature effects, early voltage, and non-ideal Vbe. Your manual Thevenin analysis assumes an ideal Vbe and constant beta. Discrepancies are normal—usually within 5-10%. If the difference is huge, check your Rth calculation or whether you included the emitter resistor. Also, verify that the transistor isn't in saturation or cutoff. The Thevenin equivalent is mathematically exact for the linear part; the error comes from the transistor model simplification. For quick hand analysis, it's excellent. For production design, you simulate and tweak.

Can I apply Thevenin to the collector side as well?

Yes. The collector network (collector resistor Rc and Vcc) can also be reduced to a Thevenin equivalent if needed. For example, if you're analyzing the output swing, you might replace Rc and Vcc with Vth_col = Vcc and Rth_col = Rc (since Vcc is already a voltage source in series with Rc). That's trivial. But for more complex collector networks with multiple resistors or loads, the same method applies. Just remember to keep the transistor out of your linear network.
