The Best Busbars for 12V Battery Configurations: A Hands-On Guide

Look—I’ve been in the trenches of battery system design for over a decade, and if there’s one piece of advice I keep shouting at anyone who’ll listen, it’s this: don’t cheap out on your busbar. Seriously. I’ve seen beautifully assembled 12V battery banks fail catastrophically because someone grabbed a bargain-bin busbar off Amazon. It’s a big deal.

The best busbars for 12V battery configurations aren’t just about conducting electricity. They’re about safety, thermal management, and longevity. And honestly? The market is flooded with options that look identical but perform wildly differently under load. So let’s cut through the noise.

Whether you’re building a solar power system, an RV electrical setup, or a marine battery bank, your choice of busbar can make or break the whole thing. I’m going to walk you through exactly what to look for, what to avoid, and why certain materials and designs dominate the field.

---

Why Your Busbar Choice Matters More Than You Think

Most folks treat busbars like an afterthought. They pick up whatever’s cheapest, bolt it in, and move on. That’s a mistake that can cost you hundreds in damaged batteries—or worse, cause a fire. The best busbars for 12V battery configurations handle high current without excessive voltage drop, resist corrosion in harsh environments, and distribute load evenly across your cells.

Here’s the thing: a 12V system pushes serious amperage. When you’re pulling 200, 300, or even 500 amps through a bank of lithium or AGM batteries, a poorly designed busbar becomes a bottleneck. Heat builds up. Connections loosen. And suddenly you’re troubleshooting a system that should have been rock-solid.

The Ugly Truth About Cheap Busbars

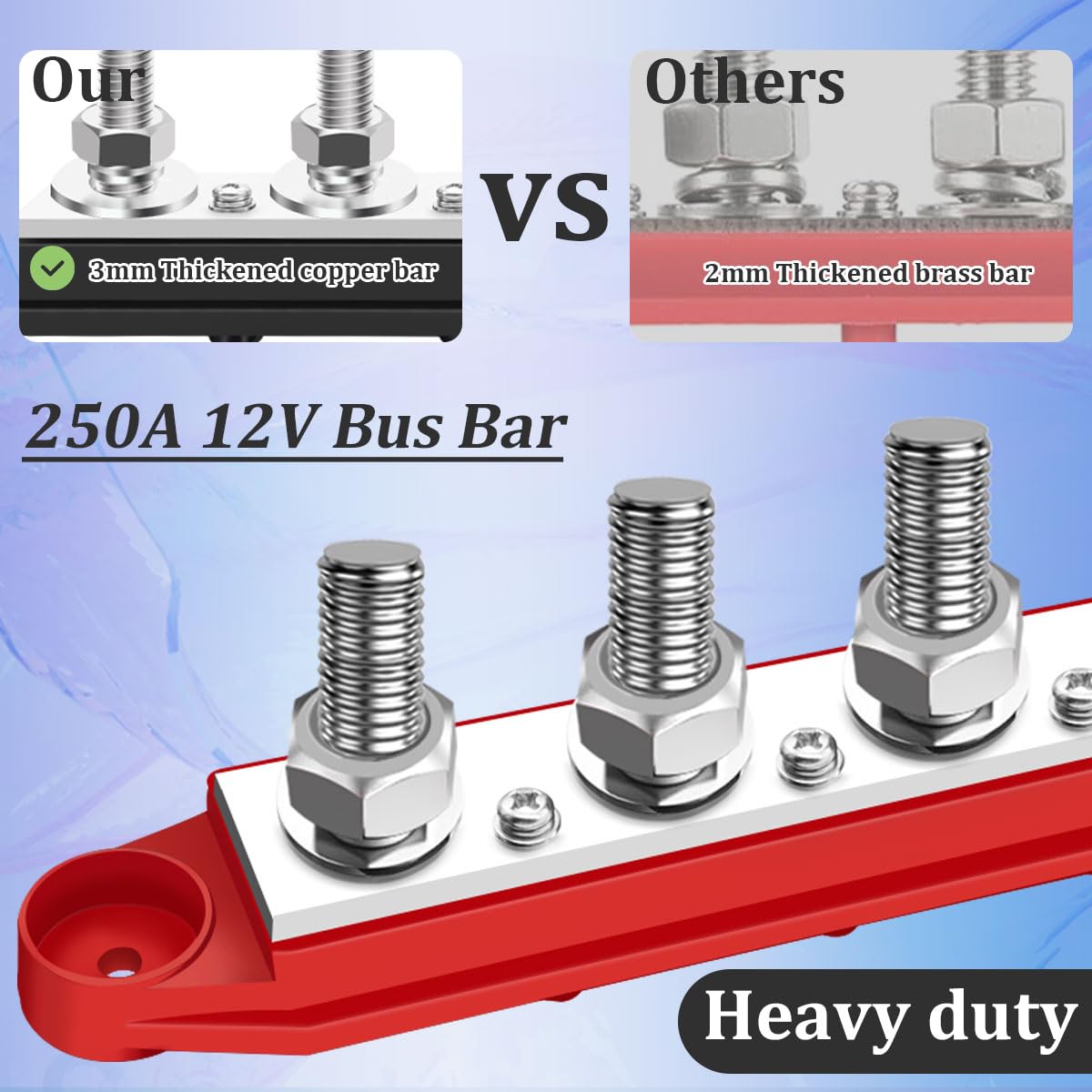

I’ve personally tested busbars that cost less than a coffee. Let me tell you—they’re scary. Many are made from brass instead of copper, or they’re copper-plated aluminum. Under load, these materials generate significant resistance. That means heat. And in a confined battery compartment, heat is your enemy.

Cheap busbars often have rough surfaces and poorly drilled holes. That creates point contact instead of full-surface contact. What does that look like in practice? Arcing, pitting, and eventual failure. The best busbars for 12V battery configurations are precision-machined with clean, burr-free holes and flat surfaces that mate perfectly with your terminal lugs.

Ampacity Isn't a Suggestion (It's a Safety Mandate)

Every busbar has a rated ampacity—the maximum continuous current it can handle. But here’s where it gets tricky: manufacturers sometimes inflate these numbers. I’ve seen a busbar rated for 600 amps melt at 400. Why? Because they tested it in ideal conditions with forced air cooling, not inside a sealed enclosure at 100 degrees Fahrenheit.

Rule of thumb: take advertised ampacity ratings and cut them in half for real-world use. If your system can pull 300 amps, don’t buy a busbar rated for 300. Get one rated for 600. The best busbars for 12V battery configurations give you generous headroom so you’re never operating at the ragged edge.

---

Copper, Tin, or Nickel? Breaking Down Busbar Materials

This is where a lot of people get confused. You’ll see busbars described as “pure copper,” “tinned copper,” “nickel-plated,” and even “tin-plated aluminum.” Each has its place. But for high-performance 12V systems, only two materials really compete at the top.

Pure Copper: The Gold Standard (With a Caveat)

Pure copper busbars offer the best conductivity. Period. They carry more current for a given cross-section than any common alternative. But here’s the problem: bare copper oxidizes. That green patina you see on old copper pipes? That’s an insulator. It increases resistance over time.

For indoor, climate-controlled setups, bare copper is fine—as long as you keep connections clean and tight. But for marine, automotive, or outdoor use, pure copper without plating is asking for trouble. The best busbars for 12V battery configurations in harsh environments are almost always tinned copper.

Tinned Copper vs. Nickel-Plated: The Corrosion Debate

Tinned copper is copper coated with a thin layer of tin. Tin doesn’t oxidize the same way copper does. It stays conductive and resists corrosion even in humid, salty environments. That’s why marine-grade electrical components use tin. It’s my personal recommendation for anything that might see moisture.

Nickel-plated busbars are another option. They look shiny and premium, but nickel has higher electrical resistance than tin. Not drastically higher, but enough that I notice it under heavy load. Nickel does offer excellent corrosion resistance, especially in chemical-heavy environments. But for straight-up 12V battery banks? Tinned copper wins.

For a quick comparison:

- Pure copper – Best conductivity, poor corrosion resistance - Tinned copper – Excellent conductivity, great corrosion resistance - Nickel-plated – Good conductivity, excellent corrosion resistance - Aluminum (any plating) – Poor conductivity, lightweight, use with caution

---

Size, Thickness, and Hole Pattern – Getting the Physical Fit Right

You’d be surprised how many people buy the wrong physical size. A busbar that’s too short forces awkward cable routing. One that’s too long creates unnecessary resistance. And the hole pattern? That’s a whole other headache.

The best busbars for 12V battery configurations match your specific battery layout. Measure the distance between your battery terminals. Account for the thickness of your cable lugs. And for the love of all that is holy, check the bolt size before you buy.

Thickness and Ampacity: How to Calculate What You Need

Busbar thickness directly correlates to current-carrying capacity. A 1/8-inch thick copper bar can handle roughly 200 amps per inch of width. A 1/4-inch bar doubles that. But here’s the nuance—length matters too. A longer bar has more resistance, so you might need to bump up the thickness to compensate.

For most 12V battery banks, I recommend: - Up to 200A systems – 1/8 inch thick, 1 inch wide - 200A to 400A systems – 1/4 inch thick, 1 to 1.5 inches wide - Above 400A systems – 3/8 inch or thicker, 1.5 to 2 inches wide

These are conservative numbers. But conservative keeps your system safe and your batteries happy.

Hole Pattern and Spacing – A Common Pitfall

I can’t tell you how many times I’ve seen someone bolt a busbar onto their battery terminals only to discover the holes don’t line up with the existing studs. Or worse, the holes are too small for the bolts. Always check the manufacturer’s spec sheet.

Standard hole sizes for busbars are typically 5/16 inch or 3/8 inch, matching common battery terminal bolts. Spacing varies—some use 1-inch centers, others use metric spacing. Measure your battery bank’s terminal layout with calipers. Don’t guess.

Look for busbars with multiple holes or slotted designs. These offer flexibility if you rearrange your configuration later. The best busbars for 12V battery configurations often include extra unused holes for future expansion. That’s a nice touch.

---

Real-World Configurations: Parallel, Series, and Mixed Setups

How you wire your batteries changes your busbar needs dramatically. A series configuration boosts voltage but keeps current the same. Parallel keeps 12V but multiplies current. Mixed setups (series-parallel) require careful busbar planning to avoid unbalanced charging.

Parallel Banks: Where Busbars Really Shine (or Fail)

In a parallel 12V bank, all positive terminals connect to one busbar and all negatives to another. Sounds simple. But if your busbar has uneven resistance between connection points, one battery will carry more load than the others. That battery ages faster, fails sooner, and drags the whole bank down.

This is called “cell imbalance,” and it’s the silent killer of parallel battery banks. The best busbars for 12V battery configurations minimize this by using a single, continuous bar rather than daisy-chaining multiple smaller bars. Daisy chains introduce resistance at every joint.

For a balanced parallel bank, use a busbar long enough to fit all your batteries side by side. Connect positive leads evenly across the bar. Do the same for negative. If you have four batteries, connect battery one to the far left, battery four to the far right, and your load to the center. That’s called “diagonal or center-tap wiring,” and it works beautifully.

Series Connections and Cell Balancing Concerns

When you wire batteries in series to get 24V or 48V, you don’t use a busbar for the interconnections—you use cables between terminals. But you might still use busbars for the output connections. For example, a 4-battery series bank at 48V still needs a positive busbar for your loads and a negative busbar for your returns.

The same rules apply: use tinned copper, size for double your expected current, and keep connections clean. But here’s a tip—when mixing series and parallel, use equal-length cables between batteries. This ensures each parallel string sees the same resistance, preventing imbalance.

---
