The Real Deal on Buying DIN Rail Compatible NPN Sensors

I’ve been in industrial automation for over a decade. I’ve seen sensors fail at the worst possible moments—right in the middle of a 2 AM production run. And I’ve seen engineers spend hours troubleshooting a signal issue that came down to one stupid mistake: buying the wrong output type.

So let’s cut through the noise.

When you’re looking to buy DIN Rail compatible NPN sensors, you aren’t just shopping for a part. You’re making a decision that affects your entire control system’s reliability. Seriously. The sensor is the first point of contact between the physical world and your PLC. If it’s not right, nothing else matters.

I’m going to walk you through exactly what to look for, what to avoid, and why NPN still holds its ground in a world that’s increasingly obsessed with PNP. Grab a coffee. Let’s dig in.

Why DIN Rail Compatibility Actually Matters

Here’s the thing—most sensors on the market are barrel-style or block-style with flying leads. You wire them into a junction box, and then that box connects to your PLC. It works. But it’s messy. And when something fails, you’re tracing wires through a rat’s nest of terminal strips.

DIN Rail compatible NPN sensors change the game. They snap directly onto the standard 35mm DIN rail inside your panel. No loose mounting. No separate brackets. You slide them in, lock them down, and they’re physically and electrically integrated.

I remember a project years ago where we had to retrofit a packaging line in under 48 hours. The client’s existing setup used barrel sensors mounted on custom angle brackets. Every sensor had a different orientation. It was a nightmare. We switched to DIN Rail compatible NPN sensors and cut installation time by more than half.

Why? Because the rail acts as both the mechanical anchor and the grounding reference. It’s standardized. It’s repeatable. And if you ever need to replace a sensor, you don’t need a tool. Just push down on the clip, slide it out, slide a new one in.

The Physical Mounting Advantage

Let me get specific. A DIN Rail compatible NPN sensor typically comes in a housing that’s about 22.5mm wide. That’s the standard for industrial interface modules. You can put ten of these side by side in about nine inches of panel space. Try doing that with barrel sensors and their associated mounting hardware.

Plus, the wiring is cleaner. Most DIN rail sensors use pluggable terminal blocks. You wire the block on your bench, plug it into the sensor, and you’re done. No fumbling with a screwdriver while holding a sensor in place against the panel.

Look—if you’ve ever tried to land a wire on a sensor that’s mounted inside a crowded cabinet, you know exactly what I’m talking about. Your knuckles are bloody. Your wire is too short. The sensor keeps spinning. It’s a mess. DIN rail fixes that.

Electrical Integration and Grounding

Here’s something most beginners miss. When you buy DIN Rail compatible NPN sensors, you’re also buying a cleaner electrical path. The rail itself is typically grounded to the panel. So the sensor’s metal housing has a direct, low-impedance path to ground.

That’s huge for noise immunity. In environments with VFDs, welders, or high-current switching, noise can couple into ungrounded sensor housings and cause false triggers. A floating sensor is a liability. A DIN rail mounted sensor—assuming you’ve bonded the rail properly—is rock solid.

Understanding NPN Output: Still Relevant in 2024

Here’s where I get a little contrarian.

Everyone talks about PNP like it’s the only option. And sure, for new installations in Europe or North America, PNP is the default. But here’s the reality: there are millions of older PLC systems still running NPN inputs. There are also specific applications where NPN makes more sense from a safety or wiring perspective.

An NPN sensor sinks current to ground. When the sensor is active, it pulls the output line low. That means the load (your PLC input) sees a voltage drop when the sensor triggers. It’s a negative logic system.

Why would you choose that? Two reasons. First, if your PLC inputs are sourcing type (which many older Japanese and some European PLCs are), NPN is what they expect. Second, NPN outputs tend to have lower leakage current in the off state, which matters in high-impedance input circuits.

I’m not saying NPN is better. I’m saying don’t dismiss it. If your control system is built around DIN Rail compatible NPN sensors, switching to PNP means changing your entire input card configuration. That’s not a trivial expense.

NPN vs. PNP: The Quick Breakdown

- NPN (Sinking): Output sinks to ground when active. Requires a pull-up resistor or sourcing PLC input. Common in older systems and certain Asian markets. - PNP (Sourcing): Output sources positive voltage when active. Common in newer European and North American systems. Easier to troubleshoot with a multimeter (you measure +24V). - The real difference: It’s not about performance. It’s about compatibility with your existing PLC input module.

When you buy DIN Rail compatible NPN sensors, you’re making a conscious choice to stick with sinking logic. And that’s fine—as long as you know why.

Voltage and Current Ratings You Can’t Ignore

Don’t be the guy who buys a sensor rated for 10-30V DC and feeds it with a 12V supply that dips to 10.5V under load. The sensor will work—until it doesn’t.

Standard DIN Rail compatible NPN sensors operate on 24V DC, typically with a range of 10-30V. But here’s the trick: check the output current rating. Most sensors handle 100-200mA. That’s plenty for driving a PLC input. But if you’re also driving a small relay or indicator light directly from the sensor output, you need to account for that current.

I’ve seen sensors fail because someone connected a 24V relay coil that drew 150mA, and the sensor was only rated for 100mA. The sensor worked for a week. Then it died. The relay was fine. The sensor was toast.

So here’s a quick checklist:

- Verify the operating voltage range matches your supply. - Confirm the output current rating exceeds the total load. - Check the off-state leakage current (should be under 1mA for most PLC inputs). - Look for reverse polarity protection and overcurrent protection.

That last one is huge. Not all DIN Rail compatible NPN sensors include protection. The cheap ones don’t. And when you accidentally reverse the power wires during installation, the sensor releases its magic smoke. Ask me how I know.

Where to Actually Use These Sensors

I get asked this all the time: “What applications really benefit from DIN Rail compatible NPN sensors?”

The answer is broader than you’d think.

- Material handling systems: Conveyor jam detection, pallet presence, divert gate position. The DIN rail format lets you cluster multiple sensors in a small control cabinet near the conveyor. - Packaging machinery: Case erectors, wrappers, label applicators. These machines often have high sensor density. DIN rail saves space. - Water treatment panels: Level sensing, flow detection, valve position. NPN outputs pair well with the older PLCs still common in this industry. - Retrofit projects: When you’re replacing sensors in an existing panel that already uses DIN rail, sticking with the same format is a no-brainer.

I did a retrofit at a bottling plant two years ago. The original sensors were decades old. The panel was packed. We replaced every sensor with DIN Rail compatible NPN sensors and reclaimed about 30% of the panel’s internal space. The client was stunned.

Common Mistakes When Buying

I keep a mental list of the things I see engineers get wrong.

First, they ignore the sensing distance. DIN Rail compatible NPN sensors come in inductive, capacitive, and photoelectric variants. Inductive sensors have a specified sensing distance—typically 4mm, 8mm, or 15mm. If you need to detect a target at 20mm, don’t buy an 8mm sensor and hope it works. It won’t.

Second, they overlook the output configuration. Some sensors have NO (normally open), NC (normally closed), or complementary outputs. If your PLC logic expects a NC signal for safety and you buy a NO sensor, you’re rewriting your program. Or worse, you’re creating a safety hazard.

Third, they assume all DIN rail sensors use the same terminal block pitch. They don’t. Some are 22.5mm wide. Some are 15mm. Some are 30mm. Measure your rail space before you buy DIN Rail compatible NPN sensors. Otherwise, you’ll end up with a sensor that doesn’t fit.

Here’s a list of specs I verify before every purchase:

1. Sensing technology (inductive, capacitive, photoelectric, magnetic) 2. Sensing distance (rated at the specified target material) 3. Output type (NPN, NO/NC, complementary) 4. Electrical ratings (voltage range, current capacity, leakage) 5. Environmental rating (IP67 minimum for industrial, IP69K for washdown) 6. Connection type (screw terminal, spring clamp, pluggable) 7. Housing material (plastic is cheaper, metal is more durable)

The Installation Tricks That Save Time

You can buy the best sensor in the world. If you install it wrong, it’s useless.

When you buy DIN Rail compatible NPN sensors, the first thing you should do is label every wire before you connect anything. I use a thermal label printer, but even a sharpie and tape works. Label both ends. Trust me—when you’re tracing a signal issue six months later, those labels are gold.

Second, use ferrules on stranded wires. The terminal blocks on DIN rail sensors are small. A stray strand can short against the adjacent terminal. Ferrules prevent that. They also make the connection more robust against vibration.

Third, don’t overtighten the screws. I’ve seen people crank down on terminal block screws until they strip the threads. The screw is brass or steel. The block is plastic. The plastic loses. Tighten until you feel resistance, then give it a quarter turn. That’s it.

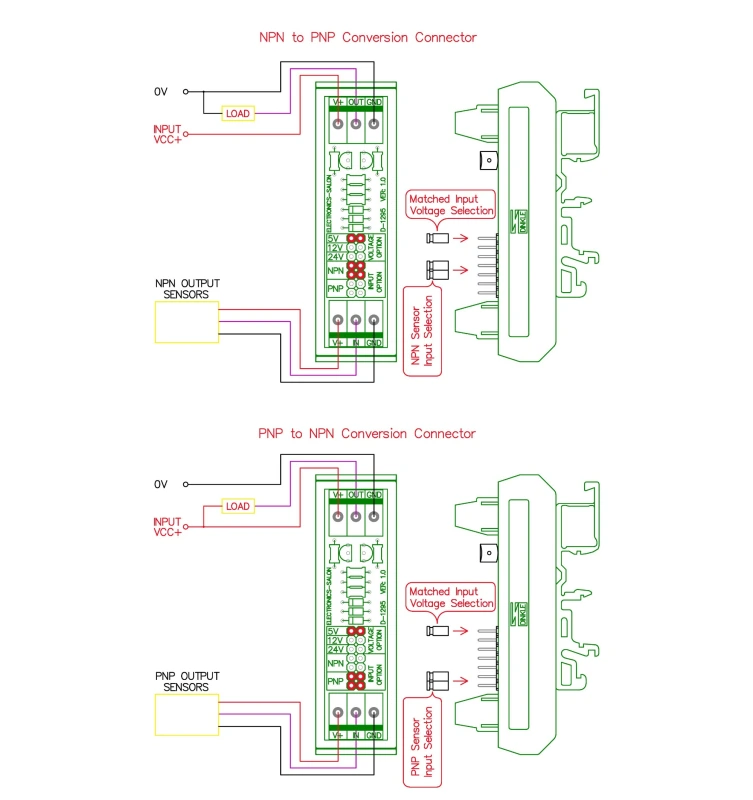

Wiring Diagram Basics for NPN

Here’s the NPN wiring rule: the load (PLC input) connects between the positive supply and the sensor output. When the sensor activates, it connects the output to ground, completing the circuit.

So you wire:

- Brown wire: +24V DC - Blue wire: 0V (ground) - Black wire: Output to PLC input

If your sensor has a fourth wire (typically white), that’s usually a second output or a selectable NO/NC configuration. Check the datasheet.

I always keep a DIN Rail compatible NPN sensor wired to a test jig on my bench. When I get a new batch, I test them before installation. It takes two minutes per sensor and saves hours of troubleshooting later.
