VCE Saturation vs Active Region Performance: The Silent Killer of Transistor Circuits
I'll never forget the first time I fried a \$200 power supply prototype because I treated VCE saturation like a fixed number in a datasheet. The transistor was supposed to switch cleanly. It didn't. The smoke was a dead giveaway. That's when I learned the hard way that understanding saturation vs active region isn't just academic—it's the difference between a circuit that hums and one that burns.

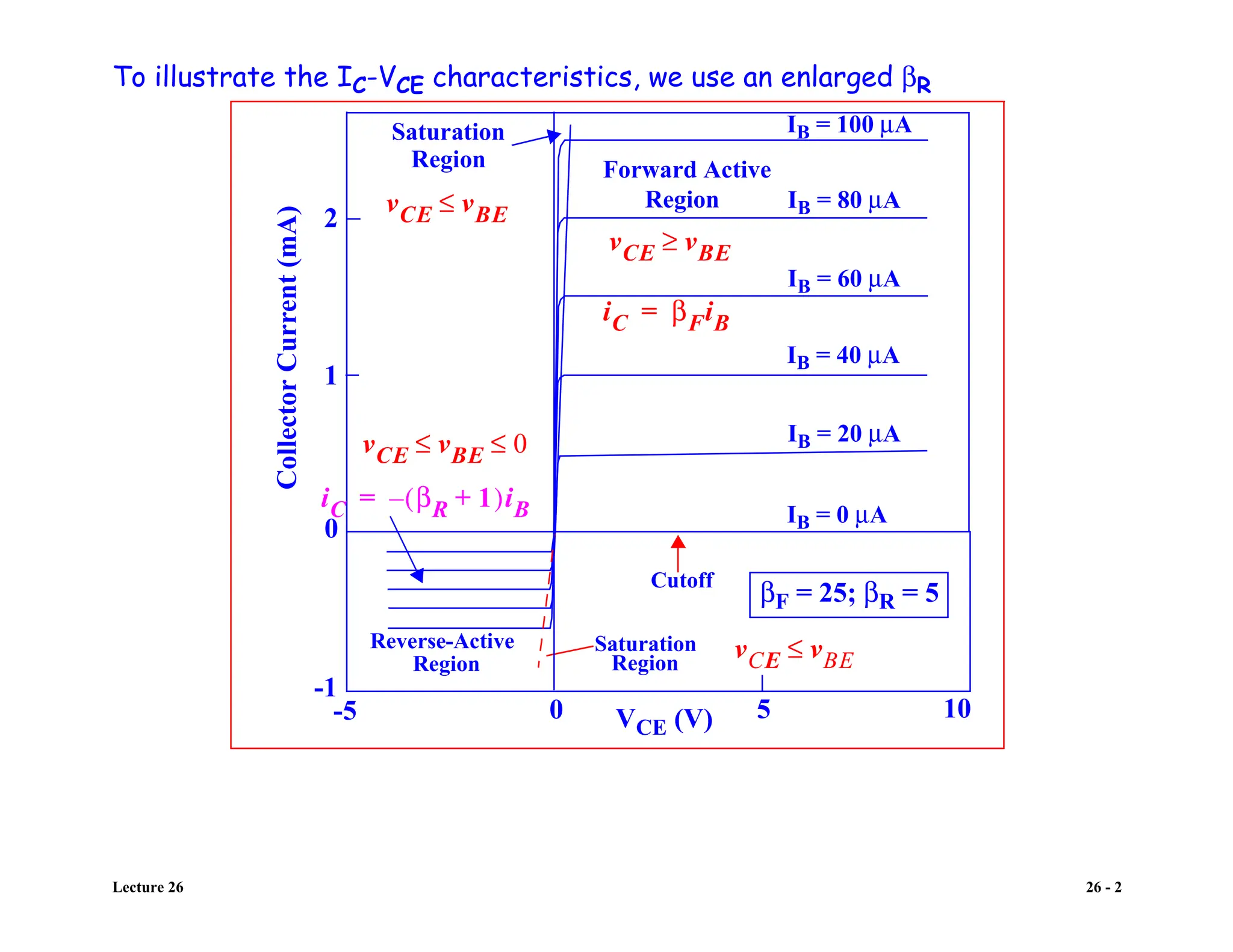

Every transistor you'll ever touch operates in one of three zones: cut-off, active, or saturation. And honestly? Most engineers spend their entire careers misunderstanding the difference between active region performance and what happens when you push that collector-emitter voltage down to near zero. Let me walk you through exactly how these regions behave, where they break, and why your choice between them determines whether your design survives thermal stress, switching loss, and linearity demands.
The Fundamental Conflict Between Saturation and Active Region Performance
Saturation and active region performance are inherently at odds. You can't optimize for both simultaneously. It's a physics constraint, not a design flaw. When a bipolar junction transistor (BJT) enters saturation, the collector-base junction becomes forward-biased. That means stored charge in the base region builds up like a traffic jam on a Friday afternoon. The deeper you push into saturation, the longer it takes to clear that charge when you want to switch off.
But here's the kicker—the active region gives you linear amplification, low distortion, and predictable gain. The trade-off? Higher VCE voltage drop means more power dissipation. Seriously, I've seen junior engineers try to run a class-A amplifier at 12V with a transistor biased in the active region, wondering why their heatsink turned into a space heater.
Look—the saturation voltage (VCE(sat)) is typically around 0.1V to 0.3V for a modern power BJT. Compare that to the active region where VCE might sit at 5V or more. That's a massive difference in power loss. For a 1A load, saturation gives you 0.3W dissipation. Active region at 5V gives you 5W. You do the math. That's why switching power supplies use saturation, and audio amplifiers use the active region. Different jobs, different tools.
Saturation: The Voltage Drop Nobody Talks About
When designers talk about VCE saturation, they usually parrot the datasheet number. But that number is a lie. Well, not a lie—it's an ideal condition. Datasheets specify VCE(sat) at a specific collector current and base drive current. Change either one, and your saturation voltage drifts. It's a big deal.
Here's what actually happens inside the transistor during deep saturation:
- The collector voltage drops below the base voltage by about 200mV to 400mV. - Minority carriers flood the collector region, creating that stored charge I mentioned. - The effective beta (current gain) collapses—you might need 1/10th the beta value to guarantee saturation. - Temperature coefficient is positive—saturation voltage increases as the junction heats up.
I once had a motor driver that worked perfectly at room temperature. At 85'C ambient, the saturation voltage doubled. The transistor couldn't turn off fast enough. The motor stalled, the current spiked, and the magic smoke escaped. Don't let that be you.
Active Region: Where Linearity Lives (and Power Dissipation Kills)
The active region performance of a BJT is where it shines as an amplifier. The collector current is proportional to the base current, multiplied by beta (hFE). This relationship is reasonably linear over a specific range—typically from a few milliamps up to maybe 80% of the rated collector current. Beyond that, beta starts dropping like a rock.
But here's the uncomfortable truth about the active region: the transistor is essentially a variable resistor controlled by base current. With 10V across VCE and 500mA flowing, you're dissipating 5W. That's a lot of heat for a TO-220 package without a heatsink. The saturation vs active region decision becomes a thermal management problem first and foremost.
I've designed linear regulators using BJTs in the active region. They work beautifully for low-dropout applications. But they eat power. If you need efficiency above 70%, you're looking at switching topologies that push the transistor hard into saturation. No free lunches in this business.
The Real-World Trade-Offs of VCE Saturation vs Active Region Performance
Let me give you the straight talk about where each region wins and loses. This isn't theory—this is what I've burned, blown up, and debugged over a decade of power electronics work.
Switching Speed vs. Voltage Headroom
In saturation, your transistor stores charge in the base-collector junction. When you try to turn it off, that charge has to be swept out. This creates a storage time delay. For a standard BJT, storage time can be 200ns to 500ns. For fast-switching transistors, it might be 50ns. But here's the problem: if you drive the base harder to reduce VCE saturation, you increase the stored charge, which increases storage time. It's a cruel trade-off.
Active region switching is faster because there's no forward-biased collector-base junction. But you pay the price in higher conduction losses. That's why high-frequency resonant converters sometimes operate transistors in the active region briefly during switching transitions—it reduces switching loss at the expense of conduction loss.
Thermal Runaway: The Silent Killer
The active region performance has a nasty thermal characteristic. BJTs have a negative temperature coefficient for VBE—the base-emitter voltage drops as temperature rises. This means more base current flows, which increases collector current, which raises temperature further. You see where this is going. Thermal runaway.
Saturation actually helps here because the collector-emitter voltage is already low. The power dissipation is lower, so the thermal stress is reduced. But don't get comfortable—saturation voltage still increases with temperature, which can cause current hogging in parallel transistors.
Let me share a quick checklist I use when selecting between saturation vs active region for a given application:
- Switching regulators: Hard saturation. No question. Efficiency wins. - Audio amplifiers: Active region. Distortion matters more than efficiency. - Motor drivers: Variable. PWM uses saturation; linear braking uses active region. - Linear regulators: Active region. The dropout voltage defines the minimum VCE. - Logic level shifting: Saturation. Speed is adequate; power is minimal.
Practical Datasheet Decoding for VCE Saturation vs Active Region Performance
You need to read datasheets like a detective reads crime scenes. The numbers tell a story, but only if you know where to look. Most engineers grab the VCE(sat) value from the first page and call it done. That's amateur hour.
Understanding the VCE(sat) Specification
Datasheets typically specify VCE saturation at a forced beta of 10 or 20. Forced beta is the ratio of collector current to base current under saturation conditions. If the datasheet shows VCE(sat) = 0.3V at IC = 1A and IB = 100mA, that's a forced beta of 10. Why so much base drive? Because you need to guarantee the transistor is fully saturated across temperature, lot variations, and manufacturing tolerances.
The actual saturation voltage depends on:
1. Collector current density 2. Base drive current (forced beta) 3. Junction temperature 4. Transistor geometry and doping profile
I always test VCE saturation at the worst-case temperature and current for my specific application. Datasheet typical values are marketing numbers. Minimum and maximum values are engineering numbers. Use the maximum.
The Beta Specification Trap
In the active region, beta (hFE) is the key parameter. But beta varies wildly with collector current, temperature, and device-to-device variation. A transistor with nominal beta of 200 might have minimum beta of 80 at high current and low temperature. If you're designing a circuit that relies on beta being consistent, you're going to have a bad day.
Here's what I do for active region performance design:
- Always design for minimum beta at worst-case current. - Add 20% margin for degradation over time. - Use negative feedback to stabilize gain. - Monitor junction temperature—keep it below 100'C for reliability.
For saturation design, I focus on:
- Guarantee sufficient base drive at minimum beta. - Include a Baker clamp or Schottky diode to prevent deep saturation. - Measure storage time in the actual circuit—datasheet values are optimistic. - Derate forced beta by at least 50% for high-reliability designs.
Common Questions About VCE Saturation vs Active Region Performance
Why does my transistor saturate at a higher voltage than the datasheet claims?
You're likely not providing enough base current. VCE saturation depends heavily on the forced beta. If your base drive is too weak, the transistor operates in the quasi-saturation region—that gray zone between active and full saturation where VCE is higher than ideal. Check your base resistor value. Increase base current by a factor of 2 and see if the saturation voltage drops. Also, verify your collector current isn't exceeding the rated value. At high currents, saturation voltage increases dramatically.
Can I use a transistor in the active region for high-speed switching?
Technically yes, but practically no. The active region allows faster turn-off because there's no stored charge in the collector-base junction. However, the conduction losses from high VCE make it inefficient for high-power switching. For low-power, high-frequency applications (RF amplifiers), the active region is standard. For power supplies above a few watts, hard saturation is the norm. Some modern devices like super-junction MOSFETs blur this distinction, but for BJTs, the rule holds.
How do I measure VCE saturation accurately in my circuit?
Use a four-wire (Kelvin) measurement. The collector current flowing through the test leads creates a voltage drop that corrupts your reading. Connect the voltage sense wires directly to the transistor leads, not the board traces. Measure at the actual operating current and temperature. Room temperature measurements are misleading—the saturation voltage increases roughly 0.1% to 0.2% per degree Celsius. If your circuit runs hot, measure hot.
What happens if I operate a BJT right at the edge of saturation?
You get the worst of both worlds. The active region performance degrades because the transistor is partially saturated, creating distortion. The saturation voltage is higher than ideal, wasting power. The switching behavior becomes unpredictable—sometimes fast, sometimes slow depending on temperature and drive strength. This edge condition is called quasi-saturation. Avoid it. Either drive hard into saturation for switching, or bias deep into the active region for linear operation. Half-measures cause headaches.
Does the saturation voltage change with transistor aging?
Yes, and it's not pretty. Thermal cycling and current stress cause metal migration in the silicon. The VCE saturation can increase by 10% to 30% over the device lifetime, especially in high-current applications. I've seen power transistors fail not because they shorted, but because the saturation voltage crept up until the power dissipation exceeded the package limit. Use derating factors for long-life designs. Add thermal protection circuits. Your future self will thank you.
---
The decision between VCE saturation and active region performance isn't a choice between good and bad—it's a choice between different tools for different jobs. Saturate your switching transistors hard. Keep your amplifiers biased in the active region. Measure everything at real operating conditions. And for the love of good engineering, don't trust the typical values in the datasheet. Your circuits will be more reliable, your power losses lower, and your smoke count dramatically reduced. That's the practical reality from someone who's been in the trenches.
