Factors that Cause Q-point Shift in BJT Circuits (And How to Fix Them)

You've built a beautiful amplifier circuit on your breadboard. It works perfectly at room temperature. Then you take it out to the garage, or maybe you just leave it running for an hour, and suddenly the output is distorted. The bias is gone. The signal clips. You're left scratching your head.

I've seen this happen more times than I can count. The culprit? Q-point shift. Seriously, if you work with bipolar junction transistors long enough, you'll develop a kind of sixth sense for it. The quiescent point, that steady-state DC operating point where your transistor sits when no signal is applied, has a nasty habit of moving around. And when it moves, your amplifier performance goes right out the window.

Let's break down exactly what causes this shift and, more importantly, what you can do about it. Because understanding these factors that cause Q-point shift in BJT circuits separates the hobbyist from the professional.

Temperature Effects on Bias Stability

Temperature is the big one. It's the silent killer of bias stability. When your circuit heats up, and it will heat up, things start to change inside that little silicon die. The physics is straightforward, but the consequences are brutal.

The Thermal Runaway Problem

Here's the nightmare scenario. Your transistor conducts current, which generates heat. That heat causes the transistor to conduct more current. More current means more heat. You see where this is going. It's a positive feedback loop from hell. Eventually, your Q-point shifts so far that the transistor either saturates completely or destroys itself in thermal runaway.

I've literally watched a transistor glow red on a bench before. Not my finest moment. The root cause is that the collector current increases with temperature. For every 10 degrees Celsius rise, you can expect about a 7-10% increase in collector current for a given base-emitter voltage. That's enormous. And it directly shifts your operating point towards saturation.

The fix? You need to introduce negative feedback. An emitter resistor, for example, fights back against this increase. When current rises, voltage across the emitter resistor rises, which reduces the base-emitter voltage. It's elegant and effective.

VBE Temperature Coefficient

The base-emitter voltage, VBE, has a temperature coefficient of roughly -2 mV per degree Celsius. That means for every degree the junction warms up, the required voltage to keep the transistor turned on drops by 2 millivolts.

Think about that for a second. If your biasing network is a fixed voltage divider, as the transistor heats up, that fixed voltage now represents a larger effective bias. The DC bias point creeps upward. It's insidious because it happens slowly. You don't notice it until the waveform starts looking ugly.

This is why temperature-compensated biasing exists. Using a diode or a thermistor in the bias network can offset this effect. Honestly, for most consumer circuits, a simple four-resistor bias network with an emitter resistor is enough. But if you're designing for industrial temperature ranges, you need to be meticulous.

Component Tolerances and Aging

You'd think that once you design a circuit, it would stay that way forever. Oh, how naive that sounds. Components drift. They age. They lie about their values. This is a massive source of operating point instability.

Resistor Tolerance Stack-Up

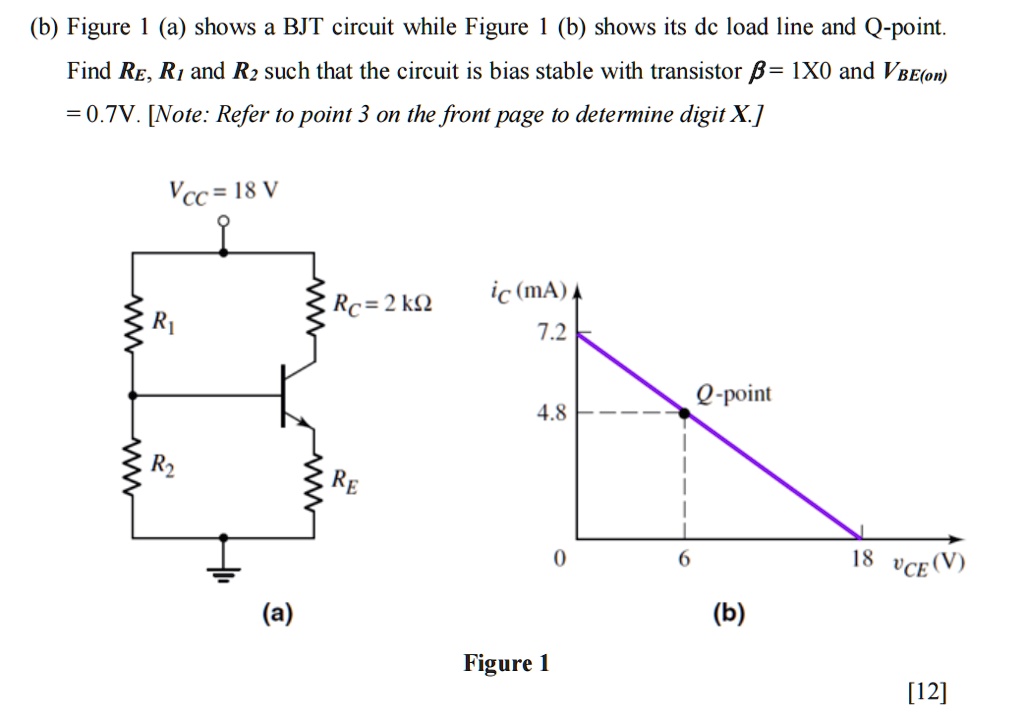

Look at your typical voltage divider bias network. It uses two resistors to set the base voltage. If those resistors have a 5% tolerance, the actual base voltage could be anywhere within a 10% window between the two worst-case combinations. And that's before we even consider the resistor values themselves.

I once designed a batch of 100 amplifiers for a client. About 12 of them had Q-points so far off that the output stage was essentially non-functional. The culprit? A 5% resistor that was actually 7% off from nominal on the low side, combined with another that was 4% off on the high side. The bias point shift was catastrophic.

You combat this by using precision resistors where it matters, or by designing your bias network to be less sensitive to absolute resistor values. The voltage divider should be stiff, meaning the current through it should be at least 10 times the expected base current. Otherwise, beta variations will dominate.

Transistor Beta Variation

Beta, or hFE, is a lie. I'm sorry, but it is. A datasheet might say a transistor has a beta of 100 to 300. That's a 3-to-1 range. If you design your BJT circuit assuming beta is exactly 200, you're going to have a bad time.

When beta is low, the base current needs to be higher to achieve the same collector current. If your bias network is not stiff, the base voltage drops, and the Q-point sinks. When beta is high, the opposite happens. The transistor tries to pull too much collector current, and the Q-point rises.

This is why using emitter resistors is non-negotiable. They provide local negative feedback that makes the circuit's DC operating point largely independent of beta. You can swap a transistor with a beta of 80 for one with a beta of 250, and the quiescent point might shift only 10-15% instead of 300%.

Capacitor Leakage

Nobody talks about this one enough. Coupling capacitors and bypass capacitors leak current. It's tiny, but over time, that leakage can alter the DC conditions in your circuit. Electrolytic capacitors are the worst offenders. As they age, their leakage current increases, and their capacitance drops.

This leakage can effectively create a secondary DC path that shifts your bias network. A 1 microamp leakage into a high-impedance base bias network can cause a noticeable Q-point shift. For high-gain circuits, it's a disaster.

Use film capacitors for critical coupling applications if you can. If you must use electrolytics, derate the voltage significantly and allow for higher leakage in your calculations.

Power Supply Variations

Here's a scenario I see all the time. Someone designs a circuit assuming the supply rail is exactly 12 volts. Then they power it from a battery that slowly discharges to 10.5 volts. Or they use a cheap wall wart that has terrible regulation. The Q-point moves immediately.

Ripple and Regulation

Poor power supply regulation directly affects your DC bias point. If your bias network is a voltage divider straight from the supply rail, then the base voltage is directly proportional to VCC. A 1-volt drop in VCC causes a corresponding voltage drop at the base.

The result? The transistor's operating point shifts towards cutoff. The amplifier might still work, but the output swing will be asymmetrical and the gain will change. If the ripple is significant, you'll hear it as hum in the output.

The best fix is a regulated supply. A 7805 or LM317 regulator is cheap and effective. If you can't use a regulator, design your bias network to be less sensitive to supply variations. Using a Zener diode reference for the bias voltage is a classic approach.

Load Resistance Changes

The load on your amplifier isn't always constant. If the load resistance changes, it changes the DC load line. The intersection of the load line with the transistor's output characteristics determines the Q-point. If the load is heavy (low resistance), the load line rotates, and the Q-point shifts.

This is particularly problematic in multi-stage amplifiers where the input impedance of the next stage represents the AC load. That input impedance changes with frequency and signal level, effectively moving the operating point around dynamically.

A common fix is to use an emitter follower (common collector) output stage. It has high input impedance and low output impedance, effectively buffering the load from the gain stage.

Common Questions About Factors that Cause Q-point Shift in BJT Circuits

What is the most common cause of Q-point shift in practice?

Temperature is overwhelmingly the most common cause. Component manufacturing variations are a close second, but temperature effects are unavoidable in any circuit that dissipates power. Even a well-designed circuit can drift significantly if it heats up 20-30 degrees Celsius above ambient. The thermal runway scenario I described earlier is the extreme case, but even moderate temperature changes cause noticeable shifts.

How do I calculate the expected Q-point shift for a given temperature range?

You can estimate the shift using the temperature coefficient of VBE, which is -2 mV/°C, and the thermal coefficient of beta, which is roughly +0.5% to +1% per degree Celsius. Start by calculating the change in VBE and the change in beta over your temperature range. Then use the appropriate biasing equations for your circuit topology to see how those changes affect collector current and VCE. For a rough estimate in a voltage divider bias circuit, expect about a 5-10% change in collector current for a 30-degree temperature swing.

Can negative feedback completely eliminate Q-point shift?

No, but it can dramatically reduce it. Negative feedback reduces the circuit's sensitivity to parameter variations. An emitter resistor provides local feedback that reduces the effect of beta and VBE changes. Overall feedback from collector to base can do even more. But it cannot eliminate it entirely. Physical devices have limits, and feedback introduces its own set of trade-offs, like reduced gain and potential stability issues at high frequencies. The goal is not zero shift, but shift that is small enough to keep the amplifier in its linear region under all operating conditions.

Why does using a constant current source improve bias stability?

A constant current source is effectively infinite feedback. Instead of setting the bias with resistors, you force a fixed current through the transistor. As long as the current source itself is stable, the Q-point is incredibly stable. Temperature and beta variations become almost irrelevant because the current source rejects them. This is why differential amplifiers in op-amps almost always use a constant current source in the tail. It's the gold standard for BJT bias stabilization, but it requires additional components and careful design.

How do I test for Q-point shift in my circuit?

The most direct method is to measure the collector voltage with a multimeter while the circuit is running. Let it warm up for 10-15 minutes and monitor the voltage. A steady drift indicates a thermal issue. You can also cool the transistor with freeze spray and watch the voltage jump abruptly. For component tolerance issues, build multiple units and measure the variation in collector voltage. If the spread is large, your bias network is too dependent on absolute component values. Use these measurements to validate your design margins.
