Comparing Energy Gaps of Silicon vs Germanium

You ever crack open a textbook on semiconductor physics and feel your eyes glaze over? I get it. The jargon gets thick fast. But here’s the thing—if you actually understand the energy gap (that tiny forbidden zone where electrons aren’t allowed to play), you unlock the secret to why your laptop doesn’t melt, why solar panels work, and why some old-school radio parts are still critical in infrared imaging. Honestly? The battle between silicon and germanium isn’t just academic. It shaped the entire electronics industry. And it’s still relevant today.

Let’s get one thing straight: the energy gap (also called the bandgap) is the energy needed to kick an electron from the valence band into the conduction band. Think of it like a moat around a castle. Too shallow, and electrons sneak across. Too deep, and nothing happens. Silicon has a bandgap of about 1.12 electron volts (eV). Germanium? A much smaller 0.67 eV. That half-volt difference changes everything.

The Core Difference: Why Bandgap Size Matters

Comparing energy gaps of silicon vs germanium isn’t just about quoting numbers. It’s about understanding how that gap dictates real-world behavior. A smaller bandgap means germanium is far more sensitive to heat. Seriously. At room temperature, germanium already has a significant number of electrons thermally excited across its gap. That leads to higher leakage currents. It’s a nightmare for circuit designers who need rock-solid stability.

Meanwhile, silicon sits comfortably at 1.12 eV. That extra room gives it a massive advantage in thermal stability. You can run silicon devices at 150 degrees Celsius without breaking a sweat. Germanium? It starts crying uncle above 70 degrees. This is the single biggest reason silicon dominates our world—it’s just more forgiving in the real world.

Look—I’ve seen rookie engineers try to use older germanium transistors in a power supply circuit. I’ll save you the trouble: it’s a disaster. The thermal runaway is brutal. The energy gap difference forces you to design completely different circuits for each material.

Here’s a quick mental model: think of the bandgap as the height of a fence. Germanium’s fence is lower, so more electrons hop over even with tiny thermal kicks. Silicon’s fence is higher, meaning it takes more heat or a bigger voltage push to get that conduction going. That’s not just physics trivia—that’s the foundation for every transistor and diode you’ve ever used.

Silicon's 1.12 eV Bandgap: The Workhorse

Let's dig into silicon’s bandgap. It’s an indirect bandgap semiconductor. That means when an electron drops from conduction to valence, it needs both a photon and a phonon to satisfy momentum conservation. Sounds complicated? It is. But the practical result is that silicon is terrible at emitting light. You can’t make an efficient LED out of it. But you can make incredibly stable logic gates, memory cells, and solar cells that don’t overheat.

The real genius of silicon’s 1.12 eV gap is its sweet spot for electronics. It’s large enough to keep leakage currents low at normal operating temperatures, but small enough that you don’t need insane voltages to turn it on. That balance? It’s why we build entire microprocessors with billions of transistors on a single chip. Silicon’s energy gap allowed the scaling revolution.

But wait—there’s a downside. That 1.12 eV limit means silicon solar cells can only absorb photons with energy above that threshold. A lot of infrared light just passes right through. This is why researchers are always chasing multi-junction cells. Silicon isn’t perfect. It’s just practical.

And here’s a pro tip: because silicon has an indirect bandgap, its absorption coefficient is lower near the band edge. You need thicker layers of material to capture all the light. That matters when you’re designing solar panels or photodetectors. Thickness costs money.

Germanium's 0.67 eV Bandgap: The Old Rebel

Germanium’s smaller energy gap tells a different story. It’s an indirect bandgap semiconductor too, but that 0.67 eV makes it far more eager to conduct. Back in the 1940s and 50s, the first transistors were germanium. It was the only game in town. But it had a fatal flaw: temperature sensitivity. Engineers had to constantly stabilize circuits against drift. It was a headache.

That smaller gap also gives germanium a huge advantage in certain niches. It absorbs infrared light exceptionally well. Germanium photodetectors are used in fiber optic communication systems precisely because they can “see” the 1.3 and 1.55 micron wavelengths that silicon can’t touch. No contest there. Germanium wins the infrared game.

But let’s be honest—pure germanium is largely obsolete for mainstream logic circuits. The leakage current at room temperature is simply too high. You end up wasting power and generating unnecessary heat. It’s an uphill battle. However, germanium is making a sneaky comeback in strained silicon-germanium alloys (SiGe). Those alloys can have a tunable energy gap that blends the best of both worlds.

Another cool fact: germanium has higher electron and hole mobility than silicon. That means carriers move faster under an electric field. If you could solve the leakage problem, germanium would be a speed demon. That’s why you see it used in high-frequency RF transistors and some specialty high-speed circuits.

How Energy Gaps Affect Real-World Performance

Comparing energy gaps of silicon vs germanium in real circuits isn’t an abstract exercise. It dictates your device’s operating temperature range, its efficiency, and even how you design the physical layout on the chip. I’ve seen plenty of engineers burn a week troubleshooting a circuit that just needed a different material choice from the start.

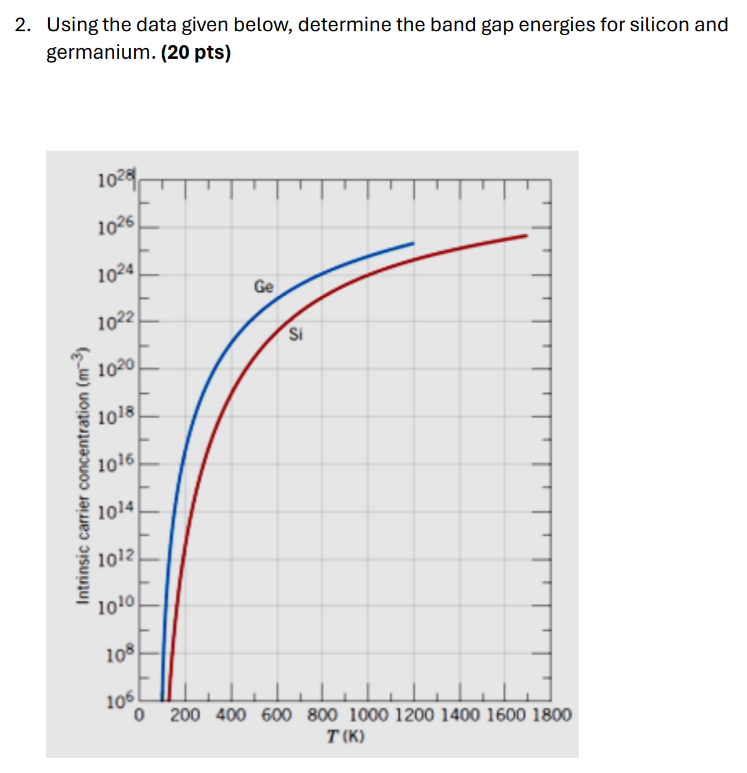

One critical parameter is the intrinsic carrier concentration. For silicon at 300K, it’s about 10^10 per cubic centimeter. For germanium? It's 10^13. That’s three orders of magnitude higher. Your device’s junction leakage scales proportionally. That means a germanium diode at the same bias will leak 1000 times more current than a silicon one. That’s not a tweak—it’s a fundamental physics constraint.

Let’s talk speed. Because germanium has higher carrier mobilities, it can switch faster in theory. But the leakage means you need more sophisticated circuit topologies to keep everything stable. You trade one headache for another. In practice, silicon circuits can achieve very high speeds with modern fabrication techniques—CMOS scaling has been wildly successful. Germanium remains niche.

And temperature? Silicon devices can operate reliably from -55°C up to 150°C. Germanium devices generally top out around 85°C. That limitation alone kills its use in automotive, aerospace, or industrial applications. You can’t sell a car ECU that fails in the summer parking lot.

Temperature Sensitivity and Thermal Runaway

This is where the rubber meets the road. The smaller energy gap of germanium makes it extremely sensitive to thermal effects. As temperature rises, the intrinsic carrier concentration increases exponentially. More carriers mean more leakage. More leakage means more heat. That heat raises the temperature again. It’s a positive feedback loop that ends in a burned-out device. Silicon’s wider gap acts as a buffer—the positive feedback is much weaker.

I once worked on a power amplifier design using vintage germanium transistors. We had to literally mount them on massive heat sinks with forced air cooling just to keep them below 70°C. It was ridiculous. A modern silicon MOSFET could handle the same job with a tiny heatsink and no fan. That’s the difference the energy gap makes.

Designers who push germanium circuits into high-power territory need to include thermal compensation networks. Usually a thermistor or a temperature-sensing diode that adjusts the bias point. It works, but it adds complexity and cost. Silicon just doesn’t need that level of hand-holding for most applications.

There is a silver lining, though. Some audio enthusiasts swear by vintage germanium transistors for their “warm” distortion characteristics in guitar pedals. That thermal instability creates a soft, musical clipping that silicon can’t replicate. So if you’re chasing a specific tone, germanium is still your friend.

Optical Absorption and the Photonics Angle

Now flip the perspective. Germanium’s smaller energy gap makes it an outstanding material for infrared detection. Silicon is transparent to light with wavelengths longer than about 1.1 micrometers. Germanium absorbs strongly out to about 1.8 micrometers. That covers the key wavelengths used in fiber optic communications. You can’t build a practical fiber optic receiver with silicon alone.

Solar cell designers face a tradeoff. Silicon cells top out around 29% theoretical efficiency (Shockley-Queisser limit). Germanium cells have a lower limit because the smaller energy gap means more energy from high-energy photons is wasted as heat. But you can stack them—use a germanium bottom cell to catch the infrared light that silicon misses. Multi-junction solar cells for space applications often use a germanium substrate for exactly this reason.

There’s also the phenomenon of Auger recombination. In germanium, because carriers are more numerous due to the smaller energy gap, non-radiative recombination becomes a problem. This kills LED efficiency. That’s why you never see germanium LEDs—they’re terrible at emitting light.

But detectors? Germanium photodiodes are fast and sensitive. They’re used in LIDAR systems and high-speed data links. Just don’t expect them to work well at high temperatures or in strong ambient light. The leakage will swamp your signal.

Material Science Trade-Offs You Can't Ignore

When you’re comparing energy gaps of silicon vs germanium, remember that the bandgap isn’t an isolated number. It couples with other material properties—mobility, dielectric constant, thermal conductivity—to define the final device performance. You don’t pick a material by bandgap alone. You pick a system.

Silicon benefits from an incredible native oxide: silicon dioxide. It forms a clean, insulating layer that’s perfect for gate dielectrics in transistors. Germanium’s native oxide (GeO2) is water-soluble and structurally poor. That alone killed germanium’s chances for mainstream MOSFETs. You can’t build reliable integrated circuits without a decent gate insulator. Silicon wins that battle hands down.

Then there’s cost and abundance. Silicon is sand. It’s cheap, abundant, and easy to purify. Germanium is a byproduct of zinc and copper mining—rarer and more expensive. For high-volume production, silicon is the obvious choice. For specialized low-volume optics or high-frequency devices, germanium earns its place.

Here’s the kicker: the industry has developed an entire ecosystem around silicon. Fabrication plants, design tools, characterization methods—all tuned to silicon’s quirks. Even if germanium had perfect properties, the switching cost is astronomical. That inertia is a real factor when comparing energy gaps for practical engineering.

Intrinsic Carrier Concentration and Leakage Currents

The math is brutal. The intrinsic carrier concentration (n_i) depends exponentially on the energy gap. For silicon, n_i is about 1.0e10 cm^-3. For germanium, it's 2.5e13 cm^-3. That 2500x difference means germanium junctions conduct current even when reverse-biased. In a p-n junction diode, the reverse saturation current scales with n_i^2. That’s six orders of magnitude difference. No amount of clever design can fully overcome that.

You can reduce leakage by cooling the device. That’s why early germanium computers needed cooling systems. Not just for the processor—the memory diodes leaked too much. Compare that to a modern silicon chip that runs passively cooled even at 100W. The energy gap makes that possible.

For circuit designers, this means germanium devices require careful bias stability. You can’t just slap a resistor and hope. You need feedback networks and often active temperature compensation. It adds cost and board space.

One exception: germanium tunnel diodes exploit that high carrier concentration to achieve negative differential resistance. That’s useful in high-frequency oscillators. But again, it’s a niche.

Processing Challenges and Interface Quality

Let’s talk fabrication. Silicon wafers are polished to perfection, with defect densities below 1 per square centimeter. Germanium wafers are more brittle, harder to polish, and have more crystal dislocations. That affects yield and device performance. When you’re making millions of transistors, every percentage point of yield matters.

The interface between silicon and its oxide is famously clean. Trap states are minimal. That’s why CMOS (complementary metal-oxide-semiconductor) technology works so well. For germanium, the poor oxide quality means high interface defect densities. Those defects act as recombination centers, killing carrier lifetime and causing noise.

Recent research has pushed toward using high-k dielectrics and surface passivation layers (like thin silicon) to improve germanium interfaces. It’s working—advanced SiGe channels in modern FinFETs are a testament to that. But pure germanium CMOS remains a research lab dream.

Thermal expansion mismatch is another headache. Germanium has a different coefficient of thermal expansion than silicon. If you try to bond them directly, stress builds up at the interface. That can crack wafers or create defects during temperature cycling.

Common Questions About Comparing Energy Gaps of Silicon vs Germanium

Why is silicon’s bandgap (1.12 eV) considered ideal for most electronics?

It balances low leakage at operating temperatures with manageable threshold voltages. It’s large enough to suppress thermally generated carriers but small enough that you don’t need extreme voltages to switch devices. That sweet spot made silicon the king of digital logic and power electronics.

Can germanium be used in high-temperature applications?

Not really. Its smaller energy gap causes severe leakage currents above about 70°C. Thermal runaway becomes a real risk. For high-temperature environments, silicon or even wide-bandgap materials like silicon carbide (SiC) are far better choices.

What’s the role of the energy gap in solar cell efficiency?

The bandgap sets the maximum voltage the cell can produce. A smaller gap like germanium’s 0.67 eV gives a lower voltage but absorbs more infrared light. Silicon’s 1.12 eV gives higher voltage but misses long-wavelength photons. The theoretical efficiency limit for a single-junction cell peaks around 1.4 eV, so neither silicon nor germanium is ideal alone.

Why don’t we see germanium LEDs or lasers?

Germanium has an indirect bandgap. That means momentum conservation requires a phonon for light emission, making radiative recombination extremely inefficient. The material heats up instead of emitting photons. Silicon has the same problem, though researchers have found ways around it using quantum confinement or strain.

Is germanium making a comeback in modern semiconductors?

Yes, in the form of silicon-germanium (SiGe) alloys and strained channels. By incorporating germanium into silicon, engineers can locally reduce the energy gap and boost carrier mobility. That’s used in high-speed bipolar transistors and some CMOS nodes. But pure germanium devices remain extremely niche.
