Common Reasons for PFC MOSFET Burnout and Failure
Let me tell you a story. I once watched a brand-new 3kW power supply go up in smoke during a routine burn-in test. The smell was awful. The client was furious. And the culprit? A single PFC MOSFET that decided to turn itself into a tiny, expensive firecracker. After a decade-plus of fixing these messes, I can tell you that PFC MOSFET burnout and failure usually isn't a mystery. It's a pattern. And once you know the patterns, you can stop playing whack-a-mole with your power supplies.
The boost converter in a Power Factor Correction stage is a brutal environment. High voltage, high frequency, and enormous stress. Your MOSFET is the workhorse. When it fails, the entire system usually goes down with it. So let's break down exactly why these components die. Not the textbook reasons. The real reasons.
Overvoltage Spikes: The Silent Killer Nobody Talks About
Here's the hard truth. Most PFC MOSFET failures aren't caused by excessive current. They're caused by voltage spikes that exceed the device's absolute maximum rating. It's a big deal. You might see a 650V rated MOSFET die in a 400V system, and everyone scratches their heads. The answer is almost always parasitic inductance.
When the MOSFET turns off, the current through the boost inductor wants to keep flowing. That energy has to go somewhere. If your layout has excessive stray inductance, the voltage across the drain-source can ring up to lethal levels. I've measured spikes over 800V on a board that was supposed to be a clean 380V bus. Seriously. The MOSFET didn't stand a chance.
How Stray Inductance Creates Voltage Spikes
The math is brutally simple. V = L * di/dt. When you turn off a MOSFET carrying 10 amps in 50 nanoseconds, even 100 nanohenries of stray inductance generates a 20V spike. And that's optimistic. Most real-world layouts have more inductance than you think. The snubber network you designed on paper might not be enough.
Look at your PCB layout. Is the PFC MOSFET physically far from the boost diode? Are the drain and source return paths long? Do you have a Kelvin connection for the gate driver? If the answer is no to any of these, you're inviting MOSFET failure. The fix isn't always a bigger MOSFET. Sometimes it's a better layout. Honestly, I've saved more designs with a shorter trace than with a bigger heatsink.
The Role of the Bulk Capacitor
Your output capacitor isn't just for filtering. It's the energy reservoir that absorbs the boost inductor's current when the MOSFET turns off. If that capacitor is too far away, or has high ESR, the voltage ripple increases. More ripple means higher peak voltage. Higher peak voltage means the MOSFET sees more stress. It's a domino effect.
Cheap capacitors are a huge red flag. I've seen systems use aluminum electrolytic capacitors with terrible high-frequency performance. The PFC stage operates at 50-100 kHz. Those capacitors are essentially open circuits at that frequency. The result? All the switching energy gets dumped into the MOSFET body diode or the snubber, if you have one. And if you don't have a snubber? Well, you know where that leads.
Gate Driver Failures: The Brain That Loses Its Mind
A MOSFET is only as good as its gate driver. I can't stress this enough. The gate driver controls the turn-on and turn-off speed. It controls the Miller plateau. It decides if your MOSFET operates in a safe zone or a death zone. PFC MOSFET burnout often starts with a driver that gives up.
Undershoot and Overshoot on the Gate
The gate is a capacitive load. When you drive it with a long trace or a weak driver, the gate voltage can oscillate. I've seen gate waveforms with 10V of ringing on a 15V drive signal. That's not a signal. That's a disaster. If the gate rings below the source voltage, the MOSFET might turn on partially and sit in the linear region. Those few microseconds of linear operation generate massive heat. The junction temperature skyrockets. Then the device fails.
It gets worse. If the gate ringing goes above the maximum rating, which is typically 20V for standard MOSFETs, you punch a hole in the oxide layer. That damage is permanent and often invisible. The MOSFET might work for a while, but it's walking dead. The next thermal cycle finishes it off.
Miller Effect and Cross-Conduction
In a totem-pole PFC topology, the Miller effect becomes a real pain. The high dv/dt from the drain couples back to the gate through the Miller capacitance. If the gate driver can't sink this charge quickly enough, the gate voltage rises. The MOSFET turns on by itself. If the complementary MOSFET is still on, you get shoot-through. That's a direct short circuit across the bus. The current is unlimited. The MOSFET failure is instantaneous.
I always recommend using a gate driver with a strong pull-down, separate turn-on and turn-off resistors, and a low-impedance path to the source. Don't cheap out here. A few cents saved on the driver can cost you a hundred dollars in replacement parts and lost production time.
Thermal Runaway: When Things Get Too Hot to Handle
You can design the perfect electrical circuit. If the thermal management is poor, the MOSFET still dies. It's physics. PFC MOSFET burnout from thermal runaway is probably the most common failure mode I've encountered in the field.
Junction Temperature and the On-Resistance Feedback Loop
Here's the ugly cycle. As the MOSFET gets hotter, its on-resistance increases. A typical MOSFET might have an Rds(on) of 0.1 ohms at 25 degrees C. At 100 degrees C, that same device can be 0.2 ohms or more. Higher resistance means higher conduction losses. Higher losses mean more heat. More heat means even higher resistance. It's a positive feedback loop that ends in a melted package.
The datasheet gives you a safe operating area for a reason. But engineers often push the MOSFET to its limits, especially in cost-sensitive designs. They use a heatsink that's barely adequate. They forget about the ambient temperature inside the enclosure. They neglect airflow. Then they wonder why the power supply fails after six months.
Switching Losses vs Conduction Losses
Look, you can't optimize for both. Fast switching reduces duty cycle losses but increases turn-on and turn-off losses. Slow switching does the opposite. The trick is finding the sweet spot for your specific frequency and load. But most engineers just copy the reference design without doing the thermal calculation.
I've seen designs where the MOSFET was operating at 150 degrees C junction temperature during normal operation. That leaves zero headroom for a transient overload or a high ambient temperature day. One good load step, and the device is gone. The datasheet says the maximum junction temperature is 175 degrees C, but running anywhere near that is a game of Russian roulette. Trust me, you don't want to be that engineer.
Layout Parasitics and Inductive Kickback
We touched on this earlier, but it deserves its own section. The PCB layout is the single most overlooked factor in PFC MOSFET failure. A perfect schematic can be ruined by a sloppy layout. I've seen it happen hundreds of times.
The Boost Inductor's Magnetic Field
The boost inductor in a PFC stage stores significant energy. Its magnetic field radiates. If your MOSFET gate trace runs near this inductor, you can get induced voltage on the gate. That's a recipe for unintended turn-on. Keep the gate drive path short, direct, and away from any high-current loops.

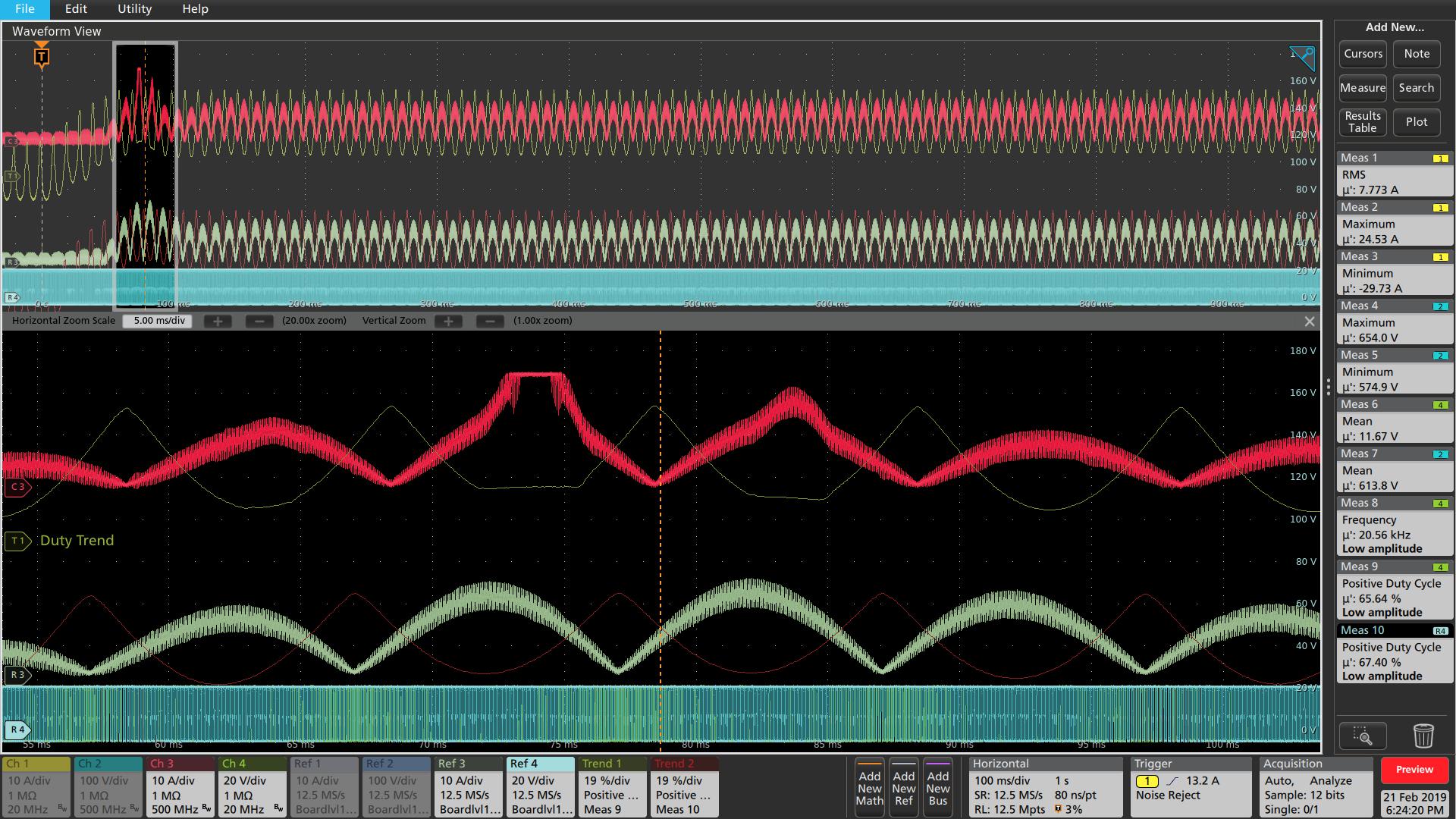

Also, the inductor itself can saturate. If you use a core with poor saturation characteristics, or if you have a DC bias that's too high, the inductance drops. When inductance drops, the current ramp rate increases. The MOSFET sees a higher peak current. That current, combined with the voltage spike from the saturated inductor, is a death sentence. I always overspec the inductor by at least 20%.
Ground Loops and Source Inductance
The source pin of the MOSFET is the reference point for the gate driver. If there is any inductance between the source and the driver ground, the gate voltage gets distorted. This is called source inductance feedback. It creates a negative feedback loop that slows down turn-on. But on turn-off, it actually helps reduce Miller effect. The problem is that source inductance also increases the voltage drop during turn-off, which adds to the drain-source stress.
A proper Kelvin connection, with a separate return path for the gate driver, solves this. It's not optional. It's mandatory for any design above a few hundred watts. If your layout has the gate driver ground going through the same copper pour as the power ground, you have a problem.
Silent Saboteurs: Aging, Cosmic Rays, and Manufacturing Defects
Not all failures are your fault. Some are just bad luck. But understanding these can help you design for reliability.
Cosmic Rays and Single Event Burnout
This sounds like science fiction, but it's real. High-energy neutrons from cosmic radiation can strike the silicon die and cause a localized avalanche. The MOSFET can turn on briefly, and if the current is high enough, it gets destroyed. This is more common at high altitudes and in regions with more cosmic radiation. Planes and data centers in Denver see more of this than sea-level installations.
There's not much you can do except derate the voltage. Using a 900V MOSFET in a 400V system gives you more margin against single event burnout. It costs more, but sometimes that's the price of reliability.
Manufacturing Defects
Occasionally, you get a bad batch of MOSFETs. The die attach might be poor, or the wire bonds might be weak. These devices pass initial testing but fail after a few hundred thermal cycles. This is why burn-in testing is essential. Run your power supplies at full load for 24 hours before shipping. The weak ones will fail then, not in the customer's hands.
I also recommend X-ray inspection of the MOSFET packages if you're buying from a new supplier. I've seen counterfeit devices with smaller die than the genuine article. They handle less current and fail faster. It's a huge problem in the industry.
Common Questions About PFC MOSFET Burnout and Failure
What is the most common symptom of a failing PFC MOSFET?
In my experience, the most common symptom is an increase in input current ripple or audible noise from the boost inductor before the device fails completely. The MOSFET starts to operate with higher on-resistance, which causes the inductor current to become discontinuous. You might also see the power supply start to draw more current at light loads. If you catch it early, you can replace the MOSFET before it shorts. Once it shorts, you usually lose the fuse, the bridge rectifier, and sometimes the control IC.
Can a PFC MOSFET fail without short circuit?
Absolutely. A MOSFET can fail open circuit, where the die cracks and the device becomes a permanent open. This is less common but happens, especially with severe overvoltage. The gate oxide can also be punctured, leaving the device stuck in a linear region. It doesn't short the drain to source, but it dissipates huge power and usually blows the gate driver or the fuse. The symptom is a power supply that is working but running very hot and inefficient.
How do I choose the right MOSFET for a PFC design?
Start with the voltage rating. You need at least 20% margin above the maximum bus voltage. For a universal input PFC that boosts to 400V, use a 650V MOSFET. For higher reliability, use 800V. Next, look at Rds(on) and the gate charge. Lower Rds(on) means lower conduction losses, but higher gate charge means slower switching. You need to balance this with your switching frequency. For 65 kHz, a MOSFET with around 30-50 nC of gate charge is typical. Finally, check the safe operating area graph in the datasheet. Make sure the device can handle the peak current at the maximum junction temperature.
Does a snubber circuit prevent all PFC MOSFET failures?
No, a snubber is not a magic bullet. It helps suppress voltage ringing, which reduces stress, but it doesn't fix layout issues, gate driver problems, or thermal management failures. A poorly designed snubber can even make things worse by adding parasitic capacitance that increases switching losses. Use a snubber as a band-aid, not a cure. The real fix is always in the layout and the component selection.
Is it worth using SiC MOSFETs for PFC to avoid burnout?
Silicon Carbide MOSFETs have much higher voltage ratings and better thermal performance than standard silicon devices. They can handle higher temperatures and faster switching without the same risk of failure. However, they require different gate drive voltages and have a higher cost. For high-reliability applications like industrial power supplies or electric vehicle chargers, SiC is absolutely worth it. For low-cost consumer products, you can still make silicon work if you design carefully. The decision comes down to your budget and your reliability requirements.
